Choosing the right surface finish for your Carbon Steel Angle Bar—hot rolled, pickled & oiled, or shot blasted—is critical for welding efficiency, coating adhesion, and long-term performance in steel construction material applications. As a trusted Shandong supplier and ASTM steel profile manufacturer, Hongteng Fengda delivers precision-engineered angle steel, C-beam steel (including ASTM C-beam and galvanized C-beam), L shape mild steel, and structural steel purlin—fully compliant with ASTM, EN, JIS, and GB standards. Whether you're sourcing for fabrication lines, infrastructure projects, or OEM solutions, our surface-finished carbon steel angle bars ensure seamless integration, enhanced durability, and consistent quality across global markets.

Understanding Surface Finish Fundamentals

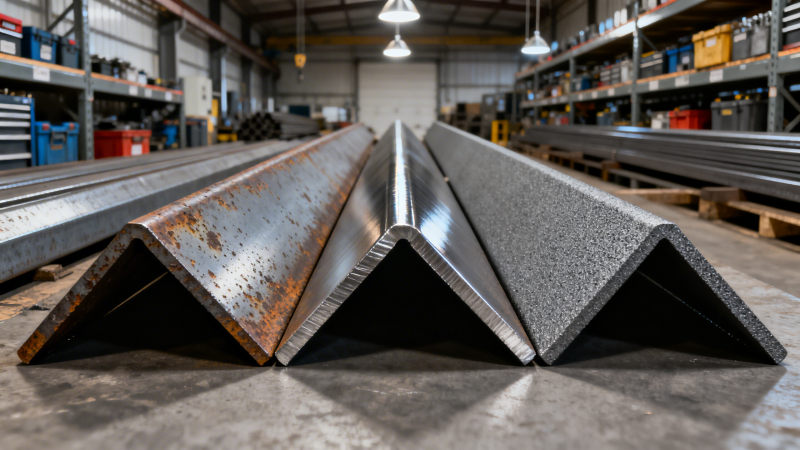

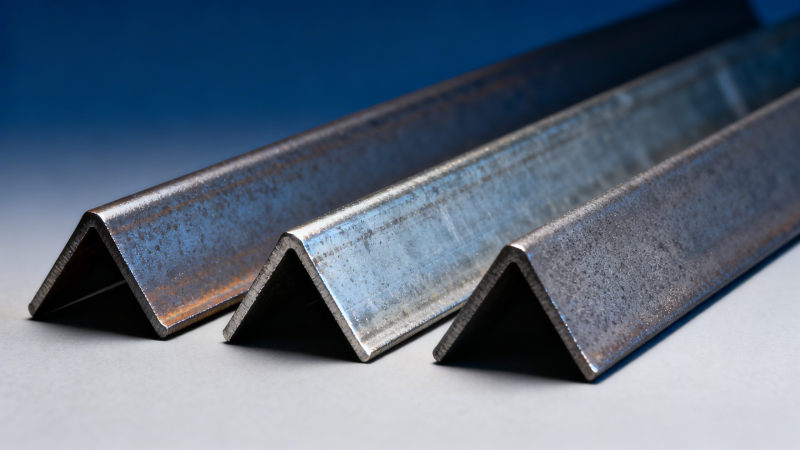

Surface finish is not merely cosmetic—it directly governs how carbon steel interacts with downstream processes. For Carbon Steel Angle Bar used in structural framing, mechanical assemblies, or load-bearing systems, the mill-applied surface condition determines weld spatter levels, primer bonding strength, rust initiation timelines, and even robotic handling reliability. Hot rolled surfaces retain mill scale—a brittle iron oxide layer formed during high-temperature rolling. Pickled & oiled (P&O) removes that scale chemically and applies a thin corrosion-inhibiting oil film. Shot blasting mechanically abrades the surface to expose clean, anchor-profiled metal ideal for painting or galvanizing.

Each method serves distinct fabrication workflows. A project manager overseeing modular building assembly may prioritize P&O for its immediate weld readiness and rust resistance during transit. Meanwhile, a plant engineer installing structural steel purlin in a humid coastal warehouse might mandate shot blasted bars to guarantee epoxy coating longevity beyond 20 years. Understanding these functional differences—not just appearance—enables smarter specification decisions early in procurement planning.

Comparative Performance Across Key Fabrication Metrics

To support objective selection, here’s how the three primary finishes perform across six critical operational parameters:

Application-Specific Recommendations

For fabricators running high-speed robotic welding cells, Pickled & Oiled offers optimal throughput: no pre-weld grinding, uniform arc stability, and minimal spatter accumulation on fixtures. Our ASTM C-beam and Structural Steel Channel products are routinely supplied in P&O condition to North American OEMs producing agricultural machinery frames—where repeatability trumps aesthetics.

Shot blasted finish excels where multi-layer protection is non-negotiable—such as offshore platform bracing or chemical plant walkways. It enables direct application of zinc-rich primers per ISO 12944 C5-M requirements. We’ve supported Middle Eastern EPC contractors by supplying shot blasted L shape mild steel with Sa 2.5 profile and certified blast cleanliness (ISO 8502-3), eliminating field sandblasting delays and ensuring coating system warranty validity.

Hot rolled remains cost-effective for buried foundations or temporary formwork—applications where final coating occurs post-installation. However, for visible architectural elements like curtain wall engineering supports or perforated steel façade carriers, hot rolled is rarely recommended without secondary finishing.

Why Hongteng Fengda Delivers Confidence at Every Stage

As a professional structural steel manufacturer and exporter from China, Hongteng Fengda integrates surface finish control into our end-to-end quality system—not as an afterthought, but as a specification-critical process step. Every Carbon Steel Angle Bar batch undergoes third-party verification (SGS/BV) for finish compliance, including visual inspection per ASTM A923, oil film thickness measurement, and blast profile analysis using replica tape per SSPC-PA 17.

We serve global buyers—from procurement officers evaluating total landed cost to safety managers validating corrosion mitigation plans—with full traceability: heat numbers, mill test reports (MTRs), and finish certification accompany every shipment. Our Shandong supplier base ensures agile response to urgent fabrication line needs, while adherence to ASTM, EN, JIS, and GB standards guarantees seamless integration into international projects—from Southeast Asian industrial furnaces to European ship beam assemblies.

Whether you require ASTM steel profile for seismic-resistant structures, galvanized C-beam for corrosive environments, or custom-cut structural steel purlin with pre-applied anti-slip coating, we align surface finish selection with your real-world constraints: lead time, labor availability, coating strategy, and lifecycle expectations. Contact Hongteng Fengda today for a tailored surface finish consultation—and discover why leading distributors, project managers, and OEMs rely on us as their long-term structural steel partner.
