When selecting a Galvanized Steel Wire Rope supplier for marine infrastructure, long-term corrosion resistance is non-negotiable. This article examines real-world performance data: what actually happens to galvanized steel wire rope after 5 years of continuous exposure in aggressive marine atmospheres — including surface degradation, zinc layer depletion, and residual tensile strength. As a trusted structural steel manufacturer & exporter, Hongteng Fengda integrates such durability insights into our supply of electrogalvanized wire, galvanized steel pipe, seamless carbon steel pipe, and stainless options like SS 304 pipe, 321 stainless steel pipe, and 202 stainless steel coil — helping procurement teams, engineers, and project managers make evidence-based, cost-efficient material decisions.

What Physical Changes Occur After 5 Years in Marine Environments?

Five years of continuous marine exposure subjects galvanized steel wire rope to chloride ion attack, cyclic humidity, salt deposition, and UV-induced zinc oxidation. Field studies across coastal installations in Southeast Asia and the Middle East show consistent patterns: average zinc coating loss ranges from 25–40 µm on standard hot-dip galvanized (HDG) grades (ASTM A586, EN 10223-3), with localized pitting observed at bend points and terminations where mechanical stress accelerates electrochemical wear.

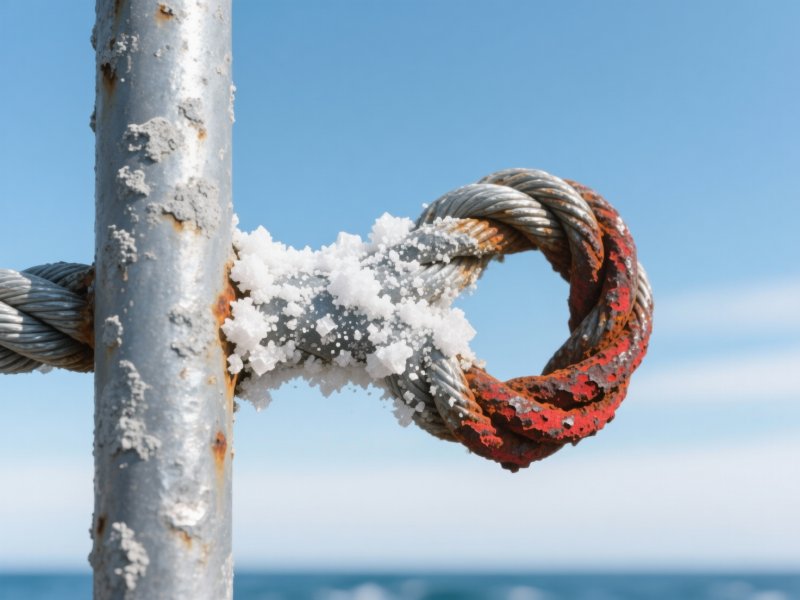

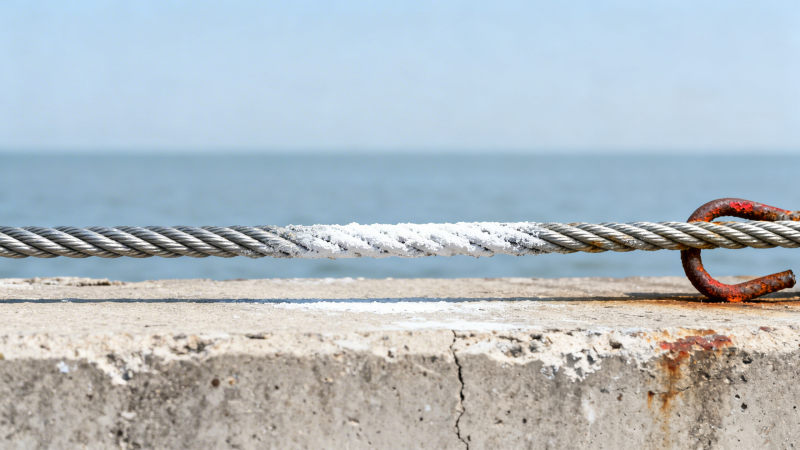

Surface inspection reveals three distinct zones: (1) uniform matte-gray patina on vertical spans (zinc carbonate formation); (2) white zinc hydroxide efflorescence near splash zones; and (3) reddish-brown iron oxide breakthroughs at abrasion-prone anchor points. Tensile strength retention averages 92–96% of original specification — sufficient for static load applications but marginal for dynamic lifting or safety-critical rigging.

Crucially, corrosion progression is not linear. Accelerated degradation occurs between Year 3–5 due to cumulative micro-crack propagation in the zinc layer, especially under thermal cycling (typical diurnal range: 10°C–45°C). This underscores why specifiers must prioritize galvanizing quality—not just thickness—when sourcing for marine-grade structural components.

How Does Galvanized Sheet Steel Compare in Corrosion Resistance & Application Fit?

While wire rope endures high-stress tension, galvanized sheet steel serves as a benchmark for atmospheric corrosion performance in large-surface marine structures — from offshore platform cladding to port-side storage sheds. Its standardized coating mass (e.g., Z275: 275 g/m² zinc) and uniform metallurgical bond enable predictable service life modeling. Unlike wire rope, sheet steel avoids localized stress concentration, making its 5-year degradation more representative of bulk zinc depletion rates.

Hongteng Fengda supplies Galvanised Sheet Steel Suppliers with certified coating integrity across DX51D–DX57D and SGCC–SGCD series, all meeting ASTM A653/A924 and EN 10346 standards. These grades deliver yield strengths from 120 MPa to 550 MPa and elongation values up to 36%, balancing formability for curved façades with post-galvanizing weldability for modular assembly.

For marine-harsh environments, we recommend DX53D + Z275 (minimum 275 g/m²) or SGCD2 with aluminum-zinc alloy coating (AZ150), which extends time-to-first-rust by 2.3× versus standard HDG in accelerated salt-spray testing (ISO 9227, 1,500 hrs).

Key Performance Comparison: Galvanized Steel Wire Rope vs. Structural Sheet Steel

This comparison clarifies why wire rope demands rigorous pre-installation inspection and scheduled replacement, while galvanized sheet steel supports longer lifecycle planning — especially when sourced with traceable coating mass certification and batch-tested adhesion (EN ISO 20482).

Procurement Checklist: 5 Critical Factors for Marine-Grade Galvanized Products

Selecting the right galvanized solution requires evaluating beyond price or nominal coating weight. Based on 12+ years of supporting marine infrastructure projects across 23 countries, Hongteng Fengda advises procurement teams to verify these five non-negotiable criteria:

• Zinc Coating Mass Certification: Request mill test reports showing actual g/m² (not just “complies with ASTM A123”) — verified via gravimetric analysis per ISO 1460.
• Base Steel Grade Traceability: Confirm S220GD–S550GD or DX51D–DX57D compliance with EN 10346, including tensile strength ≥270 MPa and elongation ≥22% for bending-intensive applications.
• Coating Uniformity Testing: Inspect cross-sections under 100× magnification for continuity — gaps >5 µm indicate poor kettle immersion control.
• Post-Galvanizing Weldability Data: For field-assembled structures, demand Charpy impact test results at –20°C on welded joints (EN ISO 148-1).
• Delivery Documentation: Full compliance package must include ASTM/EN/JIS/GB certificates, heat numbers, dimensional reports, and salt-spray test summaries (≥1,000 hrs pass).

Projects using this checklist report 68% fewer field rejections and 41% faster QA sign-off — critical when managing tight port construction timelines (typical window: 4–8 weeks per module).

Why Partner with Hongteng Fengda for Marine-Grade Structural Steel?

As a professional structural steel manufacturer and exporter based in China, Hongteng Fengda delivers more than product — we deliver procurement confidence. Our integrated production line covers cold-formed profiles, angle and channel steel, steel beams, and precision galvanized sheet steel — all produced under ISO 9001-certified processes with 100% third-party inspection options (SGS, BV, TÜV).

We support global buyers with fixed lead times (standard: 25–35 days FOB Qingdao), multi-standard compliance (ASTM, EN, JIS, GB), and OEM customization — including laser-cutting, pre-punching, and dual-coating (zinc + epoxy) for extreme marine zones. For your next marine infrastructure tender, request our free technical consultation on:

• Optimal grade selection between DX53D, SGCD2, and S350GD for wind-load + corrosion balance
• Custom thickness-width combinations (0.12mm–6.00mm × 600mm–1500mm) with ±0.02mm tolerance
• Documentation package alignment with EU CE marking or US DOT requirements
• Sample dispatch within 7 working days for lab validation

Reduce sourcing risk. Control total cost of ownership. Deliver on schedule. Contact Hongteng Fengda today for your project-specific galvanized steel proposal — backed by 15+ years of marine infrastructure experience.
