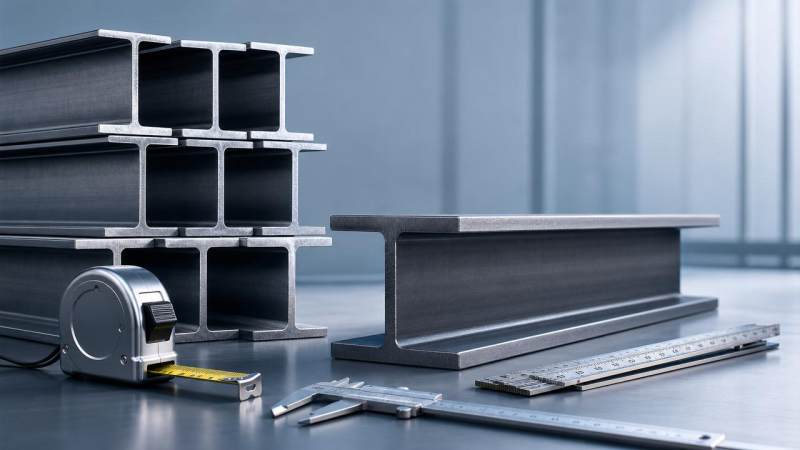

An I beam weight chart helps operators and project teams estimate steel load, transport needs, and installation planning quickly. For structural planning, using the right chart can reduce calculation errors, improve material selection, and save sourcing time. This guide explains fast estimation tips, practical weight factors, and how to choose beam specifications efficiently for real construction and manufacturing needs.

Why does an I beam weight chart matter in daily structural planning?

For operators, site supervisors, and purchasing teams, beam weight is not just a number on a drawing. It affects crane selection, truck loading, storage layout, welding preparation, and total steel cost. A practical I beam weight chart gives fast reference values before full engineering calculations are completed.

In steel fabrication and export projects, small weight errors can create larger problems later. A mismatch between estimated and actual beam weight may cause freight budget overruns, lifting limits on site, or delays in customs and logistics documentation. That is why many buyers use the chart early, then confirm final values with mill certificates and approved drawings.

For structural steel sourced internationally, the chart also helps compare sections produced under ASTM, EN, JIS, or GB standards. Dimensions may look similar, but unit weight and section properties can differ. Fast chart reading supports better communication between engineering, procurement, and operations teams.

• Estimate dead load quickly during early planning and tender review.
• Check whether transport equipment and lifting tools match beam mass.
• Compare section options when balancing strength, availability, and cost.
• Reduce sourcing risk when multiple standards or custom lengths are involved.

How to read an I beam weight chart without slowing down the job?

Most charts present section size, web thickness, flange thickness, depth, flange width, and theoretical weight per meter or per foot. Operators do not always need full section modulus data for a quick estimate, but they must identify the exact beam designation and unit system before using the chart.

The fastest method is simple: confirm the standard, find the section code, read the unit weight, then multiply by total beam length. After that, add a reasonable allowance if the order includes end plates, stiffeners, splices, holes, or coating. This prevents underestimating fabrication and shipment weight.

Key data points to check first

• Beam standard: ASTM, EN, JIS, or GB sections are not always directly interchangeable.
• Weight unit: kg/m and lb/ft are often mixed in international documents.
• Length basis: stock length, cut length, and installed length can differ.
• Added fabrication parts: connection plates and weld metal change the total shipping weight.

When teams follow this sequence, the I beam weight chart becomes a working tool rather than a passive reference sheet. It supports faster field decisions and cleaner procurement communication.

Fast estimation table for common structural planning decisions

The table below shows how an I beam weight chart is usually applied at different planning stages. It helps operators understand what level of precision is needed before ordering or lifting steel beams.

This approach keeps estimation practical. Early figures support decision-making, while final production and installation still rely on approved drawings, actual dimensions, and compliance documents.

Which factors change actual beam weight beyond the chart value?

Theoretical chart weight is useful, but real project weight often changes because fabrication adds material. Operators should treat chart values as the base steel section only unless the supplier clearly states otherwise.

Common weight influencers on real orders

1. End plates, stiffeners, and gusset plates add measurable mass, especially on connection-heavy frames.
2. Longer stock lengths may increase handling constraints even when weight per meter stays unchanged.
3. Coatings such as paint, galvanizing, or anti-rust oil slightly affect final shipment weight and packaging method.
4. Tolerance variations under different standards can change actual mass within an acceptable range.
5. Bundling, pallets, and export packing matter for container loading and inland delivery planning.

These factors are especially important for global sourcing. Hongteng Fengda supports buyers by supplying standard specifications and OEM structural steel components with modern manufacturing control. That makes it easier to match estimated tonnage with production output, inspection documents, and shipping plans.

In many projects, beam estimation is not isolated from other steel items. For example, machine bases, handrails, supports, and fabricated assemblies may also require solid steel products. In mixed-material sourcing, adding a compatible product such as A36 Carbon Steel Round Bar can simplify purchasing when construction or manufacturing work also needs round bars in 2 m, 5 m, 6 m, or 12 m lengths, with diameters from 5 mm to 2500 mm.

That product is commonly used across construction, engineering industries, decoration components, water-supplying parts, railings, staircases, doors, windows, balconies, fences, furniture, and shipment-related fabrication. With standards such as AISI, ASTM, DIN, JIS, GB, SUS, and EN referenced in market practice, buyers can align beam and bar sourcing under a more organized material plan.

How to choose the right beam section using an I beam weight chart?

A lighter section is not automatically better. Operators need a balance between weight, load capacity, procurement availability, and fabrication convenience. The right section depends on span, support conditions, connection design, handling limits, and the standard required by the project.

When buyers compare multiple beam options, they usually ask four practical questions: Will it carry the load? Can it be delivered on time? Is it easy to fabricate? Will the total landed cost stay within budget? A good I beam weight chart helps answer the last three quickly, while the engineering team verifies the first.

The following selection table is useful when weight estimation and section choice happen at the same time.

This comparison shows that beam selection is not based on theoretical weight alone. The best commercial choice often comes from a section that is structurally suitable, logistically realistic, and easier to fabricate at scale.

What procurement mistakes happen most often with beam weight estimates?

A frequent mistake is treating all I-beams as equal across standards. Two sections may have similar nominal depth, but flange width, web thickness, and mass per meter can differ. This creates problems in cost planning and connection detailing.

Another mistake is quoting only theoretical section tonnage without adding fabrication accessories. If the order includes base plates, brackets, splice plates, or corrosion protection, the final weight used for transport and customs paperwork will be higher than the basic I beam weight chart suggests.

Simple checklist before placing an order

• Confirm beam designation and standard from the approved drawing set.
• Check whether weight is theoretical section weight or finished fabricated weight.
• Review surface treatment requirements such as untreated, painted, oiled, or galvanized finish.
• Ask for tolerances, test documents, and packing details before booking freight.
• Plan around lead time if the order includes custom steel components rather than standard sections.

For buyers managing multiple steel categories, a coordinated supplier can reduce these risks. Hongteng Fengda manufactures and exports structural steel from China with a focus on angle steel, channel steel, steel beams, cold formed steel profiles, and customized structural components. This integrated supply scope helps project teams keep specifications aligned across the bill of materials.

How do standards and material details affect planning confidence?

Planning confidence improves when chart values are matched to the correct steel standard and supplier documentation. Structural projects often require compliance with ASTM, EN, JIS, or GB frameworks. Even before formal review, operators should know which standard governs the beam dimensions and purchasing language.

The same discipline applies to supporting products. If a project also uses round bars for anchors, fabricated supports, or engineering parts, material grade and treatment matter. For example, A36 Carbon Steel Round Bar is used in construction and manufacturing applications where excellent strength, wear resistance, and multiple surface options such as passivation, oiling, lacquer sealing, phosphating, galvanized, PVC, black painting, color painting, transparent oil, or anti-rust oil may be relevant to handling and service conditions.

A supplier with strict quality control and export experience helps translate technical requirements into practical supply. When mill production, inspection, packaging, and lead time are managed consistently, the numbers taken from an I beam weight chart become easier to validate through the full order cycle.

FAQ: common questions about I beam weight chart use

Can I use an I beam weight chart for exact shipping weight?

Not by itself. The chart usually gives theoretical section weight. Exact shipping weight should include fabricated attachments, coatings, packing materials, and quantity breakdown. Use the chart for fast estimation, then confirm finished piece weight with the supplier before shipment booking.

Is a heavier beam always safer for structural planning?

No. A heavier beam may increase dead load, freight cost, and lifting difficulty. Structural safety depends on full design conditions, not weight alone. The smart approach is to use the I beam weight chart together with engineering calculations and connection review.

What should operators check if dimensions look right but weight seems off?

First confirm the standard and unit system. Then check whether the drawing uses nominal size, actual size, or a local beam designation. Also ask whether the quoted value includes fabrication additions. These points solve most apparent mismatches.

Which projects benefit most from fast beam weight estimation?

Construction frames, industrial platforms, equipment supports, warehouse structures, exported fabricated steel packages, and mixed manufacturing projects all benefit. In these cases, early tonnage visibility helps with budgeting, transport planning, and supplier comparison.

Why choose us for structural steel planning and supply support?

When your team uses an I beam weight chart to move from estimate to order, the next step is choosing a supplier that can support both technical clarity and delivery execution. Hongteng Fengda provides structural steel manufacturing and export service from China for global construction, industrial, and manufacturing projects.

Our scope covers angle steel, channel steel, steel beams, cold formed steel profiles, and customized structural steel components. With modern manufacturing facilities and strict quality control, we help buyers work with standard specifications or OEM requirements under commonly referenced international standards such as ASTM, EN, JIS, and GB.

You can contact us for specific support on beam parameter confirmation, section selection, estimated tonnage review, delivery schedule discussion, surface treatment options, custom fabrication scope, certification alignment, sample support, and quotation communication. This makes the transition from weight estimation to real supply more efficient and less risky.
