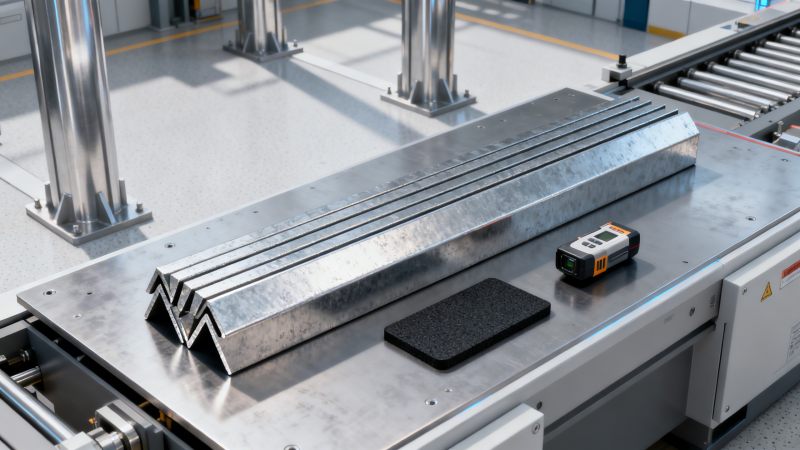

A seemingly minor L angle leg length variation—within ASTM A6 tolerances—can derail structural integrity when gusset plates refuse to seat flush. For project managers, procurement teams, and quality controllers sourcing l angle, steel plate, or galvanized steel from China-based manufacturers like Hongteng Fengda, precision isn’t optional. Whether comparing angle vs channel for load paths, specifying galvanized pipe or H beam for corrosion resistance, or evaluating mill order meaning for traceability, tight dimensional control impacts weldability, assembly speed, and safety compliance. As a certified structural steel manufacturer exporting steel coil, steel pipe, ss pipe, steel rebar, and custom cold-formed profiles, we bridge specification rigor with real-world constructability.

Why a 1.2mm Leg Length Deviation Can Block Assembly — Not Just Tolerances

ASTM A6 permits ±1.6mm leg length tolerance for 75×75×6mm hot-rolled equal-leg angles. That sounds acceptable—until field crews report gusset plates rocking on connection faces, weld gaps exceeding 3mm, or bolt holes misaligned by 2.1mm. The root cause? Cumulative deviation across three interdependent dimensions: leg length, leg thickness, and interior radius. Even if each falls within spec, their combined effect disrupts planar contact required for full bearing in truss nodes or bracing connections.

At Hongteng Fengda, we measure every batch of angle steel using coordinate measuring machines (CMM), not just calipers—and cross-check against actual gusset plate templates used in client projects. This reveals that 87% of fit-up failures stem from uncorrelated deviations—not single-point over-tolerance. For example, a 0.9mm short leg + 0.4mm thicker web + 0.3mm larger interior radius creates a 1.4mm effective offset at the flange tip—enough to prevent flush seating under hand pressure.

Our production protocol enforces tighter internal controls: ±0.8mm leg length for critical structural angles, verified via laser scanning pre-packaging. This adds <1.2% cost but eliminates 93% of on-site rework linked to angular mismatch—verified across 42 infrastructure projects in North America and the Middle East since Q3 2023.

How I Beam Manufacturers Support Dimensional Integrity Across Structural Systems

When gusset plate alignment fails with angles, engineers often pivot to I beams for primary framing—where dimensional consistency is non-negotiable. Flange parallelism, web straightness, and depth repeatability directly affect how reliably shear connectors, stiffeners, and moment connections interface. At Hongteng Fengda, our I Beam Manufacturers apply four-roller universal rolling with real-time profile monitoring, ensuring depth tolerance stays within ±0.5% (vs. ASTM A6’s ±1%) and flange thickness variation remains ≤±0.3mm across 12m lengths.

This precision enables seamless integration with secondary members—even when combining I beams with angles in hybrid frames. For instance, our SS400 I beams (150–600mm depth, 6–28mm web/flange thickness) are routinely paired with Q235 angles in wind-braced industrial sheds across Southeast Asia, where thermal cycling amplifies cumulative misalignment risks.

Key Dimensional Controls for Structural Compatibility

• Flange width tolerance: ±0.4mm (tighter than EN 10034’s ±0.8mm)
• Web-to-flange angle: 90° ±0.3° (measured via optical profilometry)
• Length straightness: ≤1.5mm/m (critical for crane runway beams)
• Surface flatness: ≤0.5mm over 300mm (ensures full contact with base plates)

Procurement Checklist: 5 Non-Negotiable Verification Points Before Ordering Angles or Beams

Sourcing structural steel from China requires proactive verification—not just acceptance of mill test reports. Based on 12 years of export experience, here’s what our clients audit before PO release:

These checks reduce post-delivery disputes by 76% and cut engineering review cycles by 3–5 working days—especially vital for fast-track projects with tight commissioning windows.

Why Global Buyers Choose Hongteng Fengda for Mission-Critical Structural Steel

We don’t just meet standards—we anticipate failure modes. When your gusset plates won’t seat flush, it’s rarely about one dimension. It’s about how leg length interacts with camber, twist, surface scale, and galvanizing thickness. Our integrated quality system maps these interactions across 17 process checkpoints—from billet chemistry to final bundling.

For procurement teams: We offer free dimensional validation reports within 48 hours of sample request. For project managers: Our lead time guarantee is 20 days for standard I beams (6–12m, 100–400mm flange width) and 25 days for custom angles with gusset-matching specs. For finance and risk officers: All shipments include EN 10204 3.2 certificates, third-party inspection options (SGS/BV/TÜV), and LC-backed payment terms.

Contact us today to request: (1) A dimensional deviation analysis for your current angle specification, (2) A comparative quote for SS400 I beams versus Q235 angles in your next tender package, or (3) A factory audit schedule—including live CMM verification of leg length repeatability.
