An H-beam weight chart is one of the fastest tools project managers can use to estimate material demand, control procurement costs, and avoid planning errors before fabrication begins. By understanding how to read beam sizes and corresponding weights, you can make quicker decisions for budgeting, transport, and site coordination while keeping your structural steel project on schedule.

Why project managers rely on an H-beam weight chart early in planning

When people search for an H-beam weight chart, they usually do not want a theoretical lesson on steel sections. They want a fast, reliable way to answer practical questions: how much steel is needed, what it will cost, how many trucks are required, whether lifting capacity is enough, and how to avoid ordering errors. For project managers, the chart is less about engineering theory and more about speed, control, and risk reduction.

In real projects, material planning decisions often need to be made before final shop drawings are complete. At that stage, a well-used H-beam weight chart helps teams create preliminary quantity estimates, compare section options, and align procurement with budget targets. Instead of waiting for detailed fabrication lists, the project team can build an early procurement framework that supports scheduling, supplier communication, and internal approvals.

This is especially important in structural steel projects where even a small miscalculation in beam weight can affect freight cost, crane planning, storage area allocation, and total project cost. A chart gives project leaders a quick reference point, but its value depends on knowing how to use it correctly and where mistakes usually happen. That is the key focus of this article.

What an H-beam weight chart actually tells you

An H-beam weight chart is a reference table that lists beam sizes together with theoretical weight, usually expressed in kilograms per meter or pounds per foot. Depending on the standard being used, the chart may also include depth, flange width, web thickness, flange thickness, sectional area, and sometimes section properties such as moment of inertia and section modulus. For planning purposes, the weight per unit length is usually the most immediately useful figure.

For a project manager, the basic use is simple: identify the beam size, find the weight per meter, and multiply it by the total length required. This gives a fast estimate of the total steel tonnage for a specific line item or for a package of structural members. That tonnage then supports budgeting, procurement scheduling, transport planning, and supplier discussions.

However, not all charts are identical. H-beam dimensions and naming conventions can differ under ASTM, EN, JIS, and GB standards. A beam that looks similar across standards may have different flange thickness, web thickness, or unit weight. Since Hongteng Fengda supplies structural steel products according to major international standards, global buyers should always confirm which standard the chart follows before using it for planning or quotation comparison.

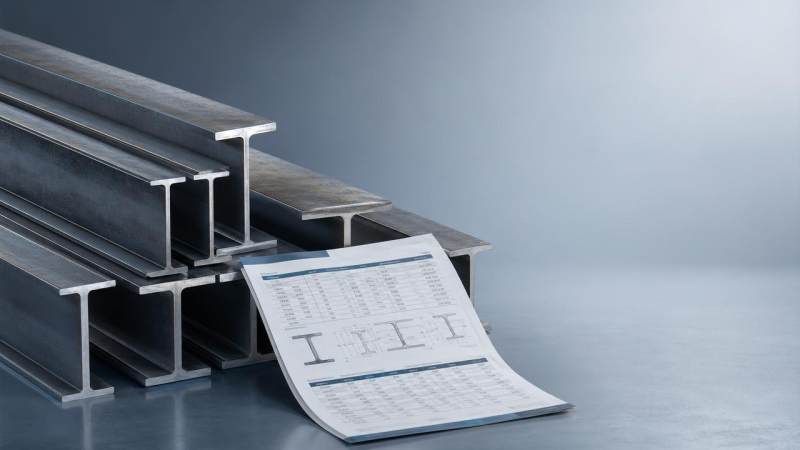

How to use an H-beam weight chart for fast material planning

The fastest workflow starts with three inputs: beam size, required length, and project quantity. Once the design team or concept layout identifies likely beam sections, you can open the H-beam weight chart, locate the unit weight, and convert the requirement into total tonnage. For example, if a beam weighs 50 kilograms per meter and the project needs 200 meters, the estimated total is 10,000 kilograms, or 10 metric tons.

That number becomes useful when linked to purchasing logic. Project managers can break the total tonnage into procurement lots, compare supplier capacity, estimate lead times, and check whether stock material or made-to-order production is more practical. If different zones of the project use different beam sizes, a simple weight chart exercise also helps prioritize which sections should be purchased first based on tonnage share and schedule criticality.

Another effective use is option comparison. Early in planning, there may be two or three acceptable beam sizes under consideration. By checking each one against the H-beam weight chart, you can immediately see how a section change affects total steel weight. Even before a detailed structural cost analysis, this gives you a useful indicator of how design choices may influence material spending, transport loads, and on-site handling requirements.

Turning chart data into budget, freight, and site decisions

The biggest advantage of an H-beam weight chart is not simply quantity takeoff. It is decision acceleration. Once total tonnage is known, procurement teams can estimate raw material cost more accurately. Finance teams can validate whether the steel package aligns with the target budget. Logistics teams can estimate container loading or truck dispatch requirements. Site teams can prepare unloading equipment and storage space based on realistic material weight rather than assumptions.

Freight planning is one of the most underestimated benefits. A beam package that looks manageable by piece count may be far heavier than expected when total length is added up. Weight chart calculations help avoid underestimating shipping cost, especially for export orders. For international buyers sourcing from China, accurate tonnage estimates also support better container planning, port handling preparation, and customs documentation consistency.

Site coordination also improves when chart-based estimates are used early. Project managers can decide whether materials should arrive in one batch or phased deliveries, how to sequence erection zones, and whether temporary storage areas are sufficient. These decisions reduce congestion, minimize double handling, and help maintain installation flow. In short, the chart is not just a technical reference; it is a management tool.

Common mistakes that cause planning errors

The first common mistake is using the wrong standard. A team may search online, find an H-beam weight chart, and assume it applies to the sections in their project. But if the design is based on JIS and the chart is based on ASTM or GB, the unit weight may not match. This can distort total tonnage, especially on larger projects. Always verify the beam designation system and the standard source before using chart data for cost or procurement decisions.

The second mistake is forgetting the difference between theoretical weight and actual delivered weight. Charts typically show theoretical values. In production, allowable tolerances, coatings, fabrication details, and cutting losses can all affect the final procurement quantity. For planning, that means you should not treat chart figures as the final purchasing quantity without adding a reasonable allowance for waste, splices, offcuts, and project-specific fabrication requirements.

The third mistake is focusing only on beam weight while ignoring related steel components. Connection plates, stiffeners, base plates, bracing members, and secondary support elements can significantly add to package tonnage. A project manager who uses the H-beam weight chart correctly should view it as the foundation of estimation, not the entire material plan. The full picture comes from combining beam weight data with fabrication scope and installation method.

How to build a more reliable procurement estimate from the chart

A practical approach is to use the H-beam weight chart in layers. First, calculate the net theoretical tonnage from beam sizes and lengths. Second, separate the estimate by area, phase, or structure type so you can see where the steel weight is concentrated. Third, add an allowance for fabrication waste, connection materials, and reasonable contingency. This turns a simple chart lookup into a procurement estimate that is much closer to real purchasing needs.

Many project managers also benefit from grouping sections into high-tonnage and low-tonnage categories. High-tonnage sections usually deserve earlier supplier engagement because they have greater budget impact and may affect mill scheduling. Lower-tonnage items can often be consolidated later or sourced together with other structural products such as angle steel, channel steel, cold formed profiles, or customized steel components depending on the supplier’s capability.

If you work across multiple countries or standards, it is also worth standardizing your internal estimation template. Include the beam designation, applicable standard, unit weight source, estimated total length, total tonnage, intended application area, and purchasing status. This reduces confusion between engineering, procurement, and logistics teams and creates a clearer record when comparing quotations from different structural steel manufacturers.

Why standard alignment and supplier capability matter

A correct H-beam weight chart is only part of fast material planning. The other part is working with a supplier who understands the standard, tolerances, and delivery requirements behind the data. A manufacturer with experience in ASTM, EN, JIS, and GB specifications can help buyers confirm whether a selected section is available, whether substitutions are possible, and how production planning should align with project deadlines.

For global project teams, supplier communication becomes more effective when chart-based estimates are clear from the start. Instead of asking for broad pricing on “steel beams,” buyers can send organized requirement lists with section sizes, lengths, estimated tonnage, standards, and delivery phases. This reduces quotation delays and lowers the risk of mismatch between what was budgeted and what can actually be manufactured and exported.

Hongteng Fengda, as a structural steel manufacturer and exporter from China, supports this kind of planning by supplying standard and customized structural steel products for construction, industrial, and manufacturing projects. For project managers, the real advantage of such a supplier relationship is not only product availability, but also better coordination on specification compliance, stable production capacity, and dependable lead times that reduce sourcing risk.

Related material planning: when pipe products also affect your steel schedule

Although this article focuses on H-beams, many projects include other steel items that must be coordinated in the same procurement window. Pipe products are a common example. In utility networks, support systems, industrial buildings, transport facilities, and agricultural structures, teams often need beam and pipe packages to arrive in a sequence that matches installation progress. That means material planning should consider not only tonnage, but also corrosion protection, service environment, and multi-product logistics.

For projects requiring corrosion resistance in low-pressure fluid transport, support frames, industrial infrastructure, or exposed environments, Hot diped-Galvanized Pipe can be integrated into the broader structural procurement plan. Available with standards such as ASTM, DIN, JIS, GB, and EN, and used across construction, machinery, agriculture, transport, and energy-related applications, it helps project teams align durability requirements with practical sourcing efficiency.

This kind of inserted planning matters because project delays often happen at interfaces, not only in major steel members. If beams are ready but related pipe systems are not, the schedule can still slip. A disciplined material plan therefore combines H-beam weight chart calculations with coordinated scheduling for all critical steel components, especially when export shipping, multi-standard compliance, or phased installation is involved.

A simple checklist for using an H-beam weight chart with confidence

Start by confirming the project standard. Before any calculation, make sure the beam designation in the drawing matches the chart source. Next, record the unit weight clearly and keep the source reference in your estimation sheet. Then multiply by length and quantity to produce net theoretical tonnage. After that, add allowances for fabrication loss, accessories, and contingency based on project complexity.

Once the quantity estimate is complete, convert it into management actions. Review the cost impact, check supplier availability, estimate shipping loads, and verify crane or handling implications on site. If the tonnage is significant, split procurement into phases aligned with construction milestones. This avoids overstocking and reduces the chance of material damage, site congestion, or cash flow pressure.

Finally, treat the chart as a live planning tool rather than a one-time calculation. Update the estimate when design revisions occur, when section substitutions are proposed, or when procurement lots are restructured. The project teams that gain the most value from an H-beam weight chart are the ones that use it continuously to support decisions, not just once to produce an early number.

Conclusion

An H-beam weight chart is valuable because it gives project managers speed, but its real power is better control. Used correctly, it helps estimate tonnage quickly, compare section options, shape realistic budgets, plan freight, coordinate site handling, and reduce procurement mistakes before fabrication starts. For structural steel projects, that combination of speed and clarity can make a measurable difference in cost control and schedule reliability.

The key is to go beyond a basic lookup. Verify the standard, understand the difference between theoretical and practical quantity, include related steel components, and connect the numbers to actual procurement and logistics decisions. When these steps are followed, the H-beam weight chart becomes more than a reference table. It becomes a practical planning framework for faster and safer project execution.

For buyers managing global structural steel sourcing, combining accurate chart-based estimates with a reliable manufacturing partner is often the most effective way to reduce risk. With the right data and the right supplier support, material planning becomes more predictable, more cost-efficient, and much easier to execute on schedule.
