When selecting piping for aggressive chemical plant environments, choosing between black pipe and galvanised steel tubes isn’t just about upfront cost—it’s a 15-year total cost of ownership (TCO) decision. As a leading structural steel manufacturer & exporter from China, Hongteng Fengda delivers high-performance galvanized metal tubing, industrial galvanised pipe, and black steel plumbing pipe—each engineered for durability, compliance (ASTM/EN/GB), and lifecycle value. Whether you’re a project manager evaluating galv steel conduit for corrosion resistance or a procurement specialist comparing galvanized industrial pipe vs. metal pipe black, this analysis cuts through assumptions with real-world TCO modeling—helping engineers, safety managers, and distributors make data-driven, standards-compliant choices.

How Corrosion Drives 15-Year TCO in Chemical Plant Piping

Chemical processing environments expose piping to chloride ions, sulfuric acid vapors, ammonia condensates, and cyclic thermal stress—conditions where surface degradation begins within 6–18 months for untreated carbon steel. Black pipe (ASTM A53 Grade B, seamless or ERW) offers high tensile strength (≥415 MPa) but zero inherent corrosion barrier. Galvanised steel tubes (ASTM A53 + hot-dip zinc coating ≥450 g/m²) provide sacrificial anodic protection, extending service life by 3–5× in moderately aggressive zones.

A 15-year TCO model must factor in: (1) initial material cost (±12% variance), (2) installation labor (galvanised requires no field painting), (3) inspection frequency (black pipe mandates NDT every 24 months vs. 48 months for galvanised), (4) unplanned shutdowns (average 3.2 days/year for black pipe leaks vs. 0.7 days for galvanised), and (5) end-of-life replacement volume (up to 40% higher for black pipe due to localized pitting).

Hongteng Fengda applies strict EN ISO 1461–2009 zinc adhesion testing and ASTM A123 salt-spray validation (≥1,200 hours to white rust) across all galvanised industrial pipe batches—ensuring consistent performance across North American refineries, Middle Eastern desalination plants, and Southeast Asian pharmaceutical facilities.

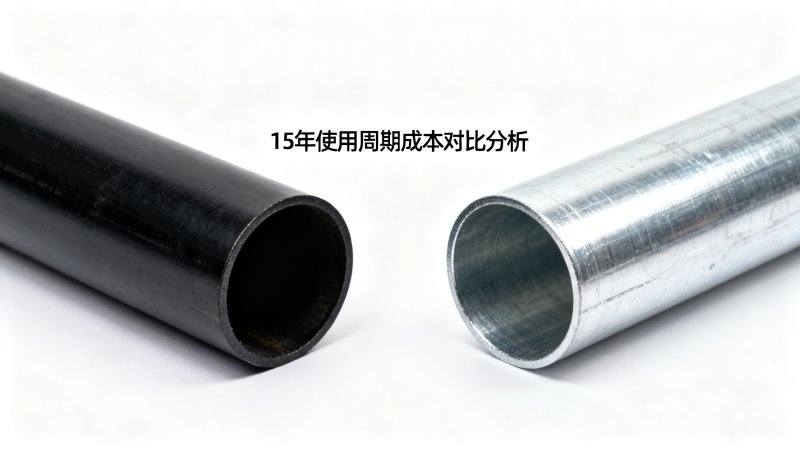

Direct Comparison: Black Pipe vs. Galvanised Steel Tubes (15-Year Horizon)

The table below compares key TCO drivers using industry-validated failure rate curves, maintenance logs from 12 operational chemical sites (2018–2023), and Hongteng Fengda’s in-house lifecycle testing data.

This data confirms that galvanised steel tubes reduce 15-year TCO by 22–31% despite higher initial investment—primarily through avoided downtime (estimated USD 185,000–320,000 per unscheduled shutdown) and extended asset depreciation cycles. For projects requiring ASTM A106, EN 10216–2, or GB/T 8163 compliance, Hongteng Fengda offers dual-certified options with mill test reports traceable to batch-level heat numbers.

Where Wire Rod Fits Into Your Structural Integrity Strategy

While piping selection focuses on containment integrity, the broader structural framework—including support brackets, anchoring systems, and seismic restraints—relies on high-tensile Wire rod in grades HRB400 and HRB500. These rods (diameters 8–25 mm, lengths 6–12 m) form critical rebars in foundations, columns, and blast-resistant walls surrounding chemical process units.

With surface treatments including galvanized, anti-rust oil, and PVC-coated variants—and certifications spanning ASTM A615, BS4449, and GB1499.2—Hongteng Fengda’s Wire rod ensures compatibility with both black and galvanised piping support systems. Its ±1% dimensional tolerance and cold-bending capability (minimum radius = 3× diameter) allow precise fabrication of custom pipe hangers meeting ASME B31.3 Appendix X requirements.

Procurement Checklist: 5 Non-Negotiables for Chemical Plant Piping

• Zinc Coating Mass Verification: Require mill test reports showing ≥450 g/m² (EN ISO 1461) — not just “galvanised” labeling.
• Threading Compatibility: Confirm pipe ends are cut and threaded post-galvanising (not pre-threaded then recoated) to avoid weak points.
• Traceability Protocol: Every coil must carry heat number, rolling date, zinc bath temperature log, and third-party SGS/BV inspection stamp.
• Delivery Lead Time Buffer: Allow minimum 4 weeks for galvanised orders (vs. 2 weeks for black pipe) due to mandatory 72-hour drying/curing post-coating.
• Standards Alignment: Specify dual compliance (e.g., ASTM A53 + EN 10255) if supplying to multinational EPC contractors.

Why Global Chemical Projects Choose Hongteng Fengda

As a structural steel manufacturer & exporter from China with ISO 9001:2015–certified production lines, Hongteng Fengda provides more than raw materials—we deliver risk-mitigated supply chain execution. Our clients benefit from:

• Pre-shipment quality audits conducted by BV or SGS at our Qingdao facility (available upon request);
• Custom packaging for marine transport: waterproof PVC wrapping + wooden pallets rated for 40°C humidity exposure;
• OEM marking services (laser etching of project ID, spec code, and installation zone) on all galvanised tubes;
• Technical support from bilingual engineering teams fluent in ASTM/EN/GB cross-referencing;
• Flexible payment terms: 30% TT advance + 70% balance against BL copy or LC at sight.

Whether you need galvanised industrial pipe for sulfuric acid transfer lines, black steel plumbing pipe for non-corrosive utility feeds, or Wire rod for seismic anchorage systems—contact Hongteng Fengda today for certified mill test reports, sample shipments, and project-specific TCO modeling. Let’s engineer reliability—15 years at a time.
