Hot dip galvanized coil is a corrosion-resistant steel product widely used in construction, infrastructure, and industrial applications—especially where durability and long-term performance matter. This article explains what hot dip galvanized coil is, how the zinc-coating process works step by step, and why it’s a smart choice for structural projects worldwide. As a trusted structural steel manufacturer and exporter from China, Hongteng Fengda supplies high-quality hot dip galvanized coil compliant with ASTM, EN, JIS, and GB standards—supporting global buyers in North America, Europe, the Middle East, and Southeast Asia with reliable supply, strict quality control, and customized solutions.

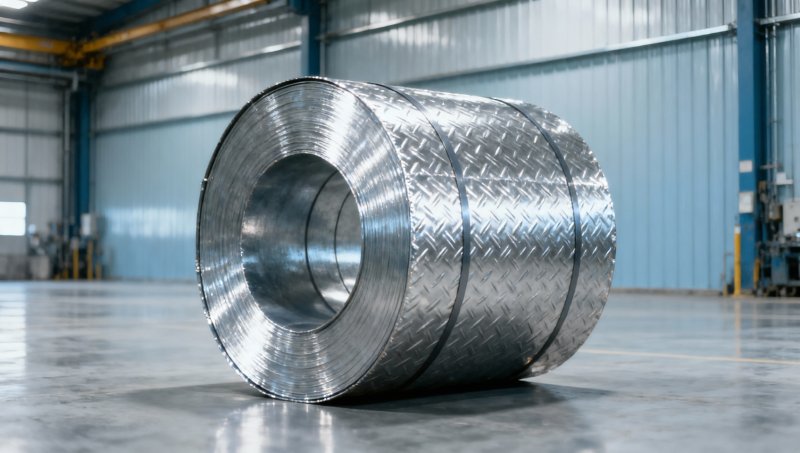

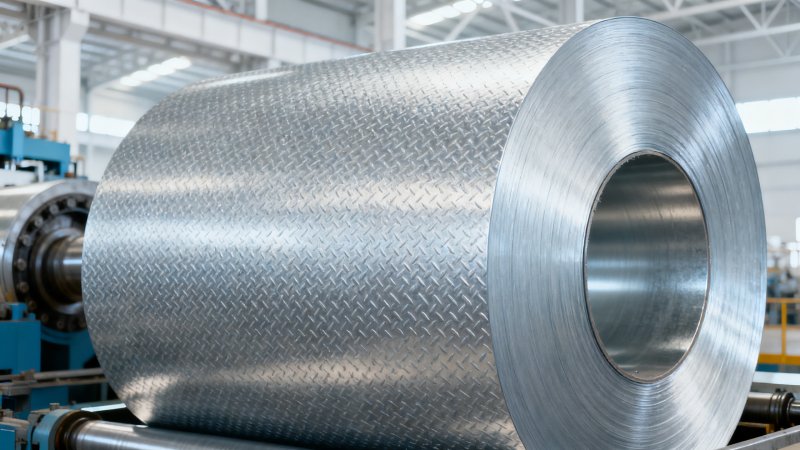

What Is Hot Dip Galvanized Coil?

Hot dip galvanized coil refers to continuous steel strip that has been immersed in molten zinc (typically at 450–465°C) to form a metallurgically bonded, multi-layered zinc-iron alloy coating. Unlike electrogalvanizing or zinc-rich paint, hot dip galvanizing produces a thick, abrasion-resistant layer — usually 45–275 g/m² — that protects both the surface and cut edges via cathodic protection.

The base material is typically low-carbon steel (e.g., Q195–Q235 or ASTM A653 SS Grade), cold-rolled to precise thickness tolerances of ±1%. Its mechanical properties remain intact post-galvanizing, making it ideal for further processing such as slitting, decoiling, bending, and welding — all critical in downstream fabrication of structural components like I-beam.

In structural steel manufacturing, galvanized coil serves as feedstock for producing corrosion-resistant profiles — including angle steel, channel sections, and custom cold-formed members. Its uniform coating thickness and consistent adhesion strength (measured per ASTM A90/A90M) ensure predictable performance across tensile yield strengths of 235–345 MPa and elongation rates of ≥20%.

How Does the Hot Dip Galvanizing Process Work?

The hot dip galvanizing process for coil follows five tightly controlled stages: degreasing → rinsing → acid pickling → fluxing → immersion in molten zinc. Each step must be precisely timed and monitored to avoid hydrogen embrittlement, uneven coating, or bare spots.

First, coils undergo alkaline degreasing (at 60–80°C for 2–5 minutes) to remove oils and rolling lubricants. Then they pass through hydrochloric or sulfuric acid baths (15–20% concentration, 50–60°C, 30–90 seconds) to eliminate mill scale and oxides. After thorough water rinsing, a flux bath (ammonium chloride/zinc chloride solution, 65–75°C) prevents re-oxidation before entering the zinc kettle.

Immersion lasts 30–120 seconds at 450–465°C. During this time, a series of intermetallic layers (Gamma, Delta, Zeta) form between the steel substrate and the outer pure zinc layer. Upon withdrawal, excess zinc drains off, and cooling occurs in ambient air or controlled nitrogen environments to minimize spangle size variation.

This standardized process ensures repeatable results across coil widths up to 1,500 mm and thicknesses from 0.25 mm to 2.5 mm — enabling seamless integration into automated roll-forming lines for structural framing systems.

Why Choose Hot Dip Galvanized Coil for Structural Projects?

For structural steel fabricators and project engineers, hot dip galvanized coil delivers measurable lifecycle advantages over untreated or pre-painted alternatives. In coastal or industrial zones with high chloride or SO₂ exposure, galvanized steel achieves service lives exceeding 50 years — compared to just 5–10 years for bare carbon steel.

Its self-healing property — where exposed steel edges are protected by adjacent zinc — eliminates the need for touch-up painting during on-site assembly. This reduces labor costs by an estimated 30–40% versus painted systems and cuts maintenance frequency by up to 75% over 20 years.

Hongteng Fengda’s galvanized coil meets ASTM A653, EN 10346, JIS G3302, and GB/T 2518 standards. Every batch undergoes third-party salt-spray testing (ASTM B117) for ≥96 hours without red rust formation — validating its suitability for infrastructure projects in North America, the Middle East, and Southeast Asia.

Key Selection Criteria for Procurement Teams

Procurement professionals evaluating hot dip galvanized coil should prioritize four criteria: coating mass, adherence quality, dimensional consistency, and traceability. Minimum coating mass should be 120 g/m² for indoor use and 275 g/m² for aggressive outdoor environments. Adherence is verified via bend tests (ASTM A143) — no flaking after 180° wrap around a mandrel equal to the coil thickness.

Dimensional tolerance is equally critical: width deviation must stay within ±0.5 mm, and thickness variation ≤±1%. All coils supplied by Hongteng Fengda include mill test reports (MTRs) with full chemical composition (C ≤0.25%, Mn ≤1.35%) and mechanical data (yield strength, tensile strength, elongation).

Additionally, lead times for standard orders are consistently maintained at 15–25 days from confirmed PO — supported by 120,000 MT annual production capacity and ISO 9001-certified logistics coordination.

Integration With Structural Fabrication Systems

Galvanized coil is commonly fed into high-speed roll-forming lines to produce structural members such as purlins, girts, and light gauge trusses. Its consistent flatness (≤0.3 mm deviation per meter) and edge squareness (<±0.2°) ensure stable feeding and minimal tool wear — extending die life by up to 40% versus non-galvanized feedstock.

When combined with precision-cut I-beam sections — available in heights from 10 cm to 60 cm, flange widths of 100–400 mm, and web thicknesses of 6–28 mm — galvanized coil enables fully integrated, corrosion-resistant framing systems for warehouses, solar mounting structures, and modular buildings.

All I-beams offered comply with EN 10025, ASTM A653, and GB/T 706 standards, supporting bending, welding, punching, and cutting operations without compromising coating integrity. Flange and web thickness tolerances are held to ±1%, ensuring fit-for-purpose performance in bolted connections and moment-resisting frames.

Conclusion & Next Steps

Hot dip galvanized coil is not just a commodity steel product — it is a foundational enabler of long-term structural resilience, cost-efficient fabrication, and reduced lifecycle risk. From coil specification to final beam installation, every stage benefits from controlled metallurgy, certified process discipline, and application-aware engineering.

As a professional structural steel manufacturer and exporter from China, Hongteng Fengda provides end-to-end support — from technical consultation on coating selection and coil compatibility to OEM co-engineering of custom profiles. Our global delivery network ensures stable supply to North America, Europe, the Middle East, and Southeast Asia — backed by strict QC, full documentation, and responsive commercial terms.

Ready to optimize your structural steel sourcing? Contact Hongteng Fengda today to request mill test reports, sample coils, or a tailored quotation based on your project specifications and volume requirements.
