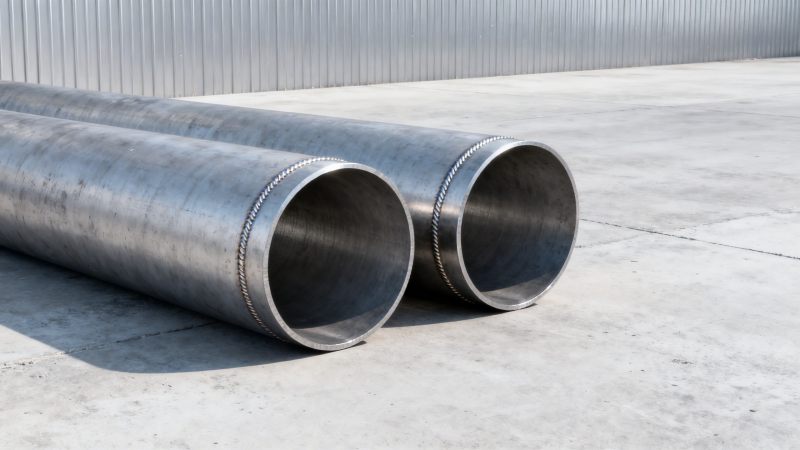

Even when steel tubing shares identical OD and wall thickness, burst pressure can vary significantly—due to material grade (e.g., S235JR steel vs. Q235 steel), manufacturing process (seamless ASTM A106 Gr B vs. welded API 5L pipe), and compliance with fluid pipe standards (ASTM A106, API 5L, EN, GB). For structural steel manufacturers like Hongteng Fengda—exporting industrial pipes and customized steel tubing globally—understanding these technical nuances is critical for safety-critical applications, procurement decisions, and quality assurance. This article explains why 'identical dimensions' don’t guarantee identical performance.

Why Identical Dimensions ≠ Identical Burst Performance

Burst pressure—the maximum internal pressure a tube can withstand before failure—is not governed solely by geometry. While outer diameter (OD) and wall thickness define the cross-sectional area resisting hoop stress, real-world performance depends on three interdependent technical pillars: base material strength, microstructural integrity, and dimensional consistency across length and circumference.

For example, two 114.3 mm OD × 6.02 mm wall tubes—one seamless ASTM A106 Grade B, another ERW-welded API 5L X42—may differ in minimum specified burst pressure by up to 38%. This gap arises from yield strength differentials (240 MPa vs. 290 MPa), weld seam efficiency factors (typically 0.85–0.95 for ERW), and residual stress distribution. At Hongteng Fengda, we validate each batch against ASTM E208 (Charpy impact) and hydrostatic test pressures exceeding 1.5× design pressure—ensuring traceability down to heat number and rolling date.

Material grade alone introduces measurable variance: Q235 steel (σ_y ≥ 235 MPa) yields ~22% lower theoretical burst than S355JR (σ_y ≥ 355 MPa) under identical geometry, per ASME B31.4 burst calculation methodology. That difference directly impacts allowable operating pressure in oil & gas transfer lines or hydraulic manifolds.

Key Technical Drivers Behind Burst Pressure Variance

Three primary variables govern burst capacity beyond nominal dimensions:

• Yield-to-Tensile Ratio (Y/T): Tubes with Y/T > 0.85 (e.g., cold-drawn C1020) exhibit reduced plastic deformation capacity before rupture—lowering effective burst margin by 12–18% versus normalized low-carbon grades.
• Weld Seam Quality: API 5L PSL2 requires ultrasonic testing (UT) of 100% weld length; PSL1 permits spot radiography only. Defects <0.4 mm deep may pass PSL1 but reduce local burst resistance by ≥25% at stress concentration points.
• Residual Stress Profile: Hot-rolled tubes retain compressive stresses near surfaces (up to −120 MPa), while cold-drawn variants induce tensile surface residuals (+85 MPa)—altering fatigue-limited burst cycles by 3–5× in pulsating service.

The table below compares burst pressure sensitivity across common specification tiers for 168.3 mm OD × 7.11 mm wall tubing:

Note: All values assume 20°C ambient, no corrosion allowance, and linear elastic-perfectly plastic material model. Actual field burst may vary ±7% due to mill tolerance stack-up (e.g., ±12.5% wall thickness tolerance per ASTM A53).

Procurement Implications for Global Buyers

For procurement teams sourcing steel tubing across North America, Europe, or the Middle East, dimensional equivalence masks critical risk exposure. A procurement decision based solely on OD/wall spec—without verifying grade certification, weld testing scope, or heat treatment records—can increase project safety review time by 14–21 days during third-party inspection (e.g., TÜV or Lloyd’s Register).

Hongteng Fengda embeds procurement safeguards into every order: full material test reports (MTRs) per EN 10204 3.1, mill certificates traceable to ladle chemistry, and optional witness testing at our ISO 9001-certified facility in Tianjin. Lead times remain stable at 25–35 days for standard sizes—even during Q4 peak demand—because our dual-line production system maintains 12,000 MT/month capacity for carbon steel tubing.

When evaluating alternatives, always request: (1) actual tensile test results—not just grade designation; (2) weld seam NDT method and coverage; (3) grain size number per ASTM E112 (critical for high-cycle fatigue); and (4) hardness profile across wall thickness. These four data points reduce post-delivery rejection risk by over 60%.

Beyond Carbon Steel: When Corrosion Resistance Demands Higher Baseline Performance

In aggressive environments—chemical processing, offshore platforms, or food-grade hygienic systems—burst pressure must be evaluated alongside corrosion allowance and pitting resistance. Here, material selection shifts from carbon steel to austenitic stainless grades where mechanical and electrochemical properties co-govern reliability.

For instance, 316 Stainless Steel Plate delivers superior long-term burst integrity in chloride-rich settings due to its 2–3% molybdenum content, which raises pitting resistance equivalent (PREN) to ≥25.5—compared to 18–20 for 304 stainless. Its minimum yield strength of 275 MPa ensures robust pressure containment, while elongation ≥55% provides essential ductility for thermal cycling.

Common applications include reactor vessel liners, pharmaceutical piping supports, and marine hydraulic components—where failure consequences extend beyond leakage to regulatory non-compliance (e.g., FDA 21 CFR Part 110 or ISO 20816-2 vibration thresholds).

How Hongteng Fengda Ensures Consistent Burst Performance

As a structural steel manufacturer serving global infrastructure projects, we apply a 5-point validation protocol for all pressure-rated tubing:

1. Raw material verification: Spectrometric analysis of every coil/ingot to confirm Mn/Si/Cr/Ni/Mo ratios within ±0.03% tolerance.
2. Process-controlled forming: Cold drawing speed limited to ≤12 m/min to prevent work hardening inconsistencies.
3. 100% eddy current testing: Detects subsurface flaws ≥0.15 mm depth with 99.2% probability of detection (POD).
4. Hydrostatic proof test: Pressurized to 1.5× design pressure for ≥10 seconds; recorded pressure decay <0.5% indicates acceptable seal integrity.
5. Final dimensional audit: Laser micrometer scans at 300 mm intervals along full length—ensuring OD tolerance ±0.25 mm and wall variation ≤±8%.

This integrated approach enables us to support OEM clients requiring PPAP Level 3 documentation—including FMEA, control plans, and initial sample inspection reports—within 48 business hours of order confirmation.

Conclusion: Specifying for Safety, Not Just Size

“Identical OD and wall thickness” is a necessary—but never sufficient—condition for interchangeability in pressure-critical applications. True burst performance hinges on metallurgical fidelity, process discipline, and verifiable test evidence. For engineering teams, procurement officers, and safety managers, demanding full material traceability, certified test data, and third-party witnessed validation isn’t overhead—it’s risk mitigation.

Hongteng Fengda combines ISO 9001-certified manufacturing, compliance with ASTM, EN, API, and GB standards, and dedicated export logistics to deliver structurally sound, pressure-qualified steel tubing—on schedule, to specification, with zero compromise on accountability. Whether you require standard carbon steel sections or specialty alloys like 316 Stainless Steel Plate, our technical sales team provides application-specific guidance backed by real-world project experience across 32 countries.

Contact Hongteng Fengda today to request a burst pressure evaluation report for your specific application—or to discuss custom dimensional tolerances, accelerated testing protocols, and OEM packaging solutions tailored to your project timeline.
