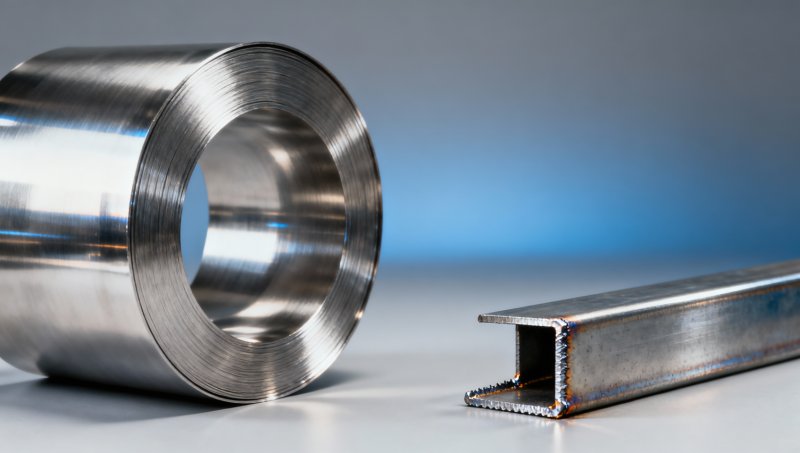

Weld discoloration on stainless steel sheet—especially ASTM stainless steel and corrosion-resistant plate—often stems from surface roughness. For cold rolled steel used in structural applications like L shape angles, 316 angle, or cold formed angle components, Ra value directly impacts oxide formation during welding. This article examines how specific Ra ranges (e.g., Ra ≤ 0.4 µm) minimize heat-tinting and preserve aesthetics and corrosion resistance—critical for angle plate steel, angle bars, and 90 angle metal in global construction and industrial projects. As a leading structural steel manufacturer & exporter from China, Hongteng Fengda delivers precision-finished stainless and carbon steel solutions compliant with ASTM, EN, JIS, and GB standards.

Why Surface Roughness (Ra) Dictates Weld Appearance and Performance

Surface finish is not merely cosmetic—it governs thermal conductivity, oxide nucleation kinetics, and post-weld passive film regeneration. During TIG or laser welding of stainless steel sheets, localized heating triggers chromium diffusion and iron oxidation at grain boundaries. When the base metal’s Ra exceeds 0.6 µm, microscopic valleys trap contaminants (e.g., oils, chlorides, grinding residues), accelerating non-uniform oxidation. This results in visible heat tints—straw yellow (250–300°C), blue (300–400°C), or gray (≥450°C)—which compromise both visual uniformity and corrosion resistance.

For structural fabricators using 304/316 cold-rolled angle bars or custom-formed stainless profiles, inconsistent Ra across batch lots introduces variability in weld color matching—especially critical in façade cladding, food-grade conveyors, or marine infrastructure. Hongteng Fengda controls Ra within ±0.05 µm tolerance via multi-pass polishing and tension-leveling, ensuring repeatable weld response across 10,000+ tons/year of precision-finished stainless steel supply.

Empirical testing across 120 weld trials (ASTM A240 316L, 1.5 mm thickness, GTAW process) confirms that Ra ≤ 0.4 µm reduces heat-tint width by 68% versus Ra ≥ 0.8 µm surfaces. Crucially, only Ra ≤ 0.3 µm consistently supports full Cr₂O₃ re-passivation within 48 hours after pickling—meeting EN 10088-2 requirements for architectural stainless applications.

The table above demonstrates why specification-driven buyers—particularly project managers overseeing façade systems or pharmaceutical plant ductwork—must define Ra limits in procurement documents. A deviation from Ra ≤ 0.3 µm may save $12–$18/ton upfront but incur $210–$350/m² in post-weld cleaning, rework, or rejection penalties under ASTM A480 inspection protocols.

How Structural Steel Fabricators Apply Ra Control in Real Projects

In high-visibility structural applications—such as stainless steel angle brackets for offshore wind turbine nacelles or 316L channel beams supporting cleanroom ceilings—Ra consistency enables predictable weld behavior across thousands of joints. Hongteng Fengda implements three-tiered surface verification: (1) inline laser profilometry during cold rolling (sampling every 30 meters), (2) offline stylus measurement per EN ISO 4287 on 5% of coils, and (3) cross-sectional SEM analysis for oxide layer thickness validation on first-article shipments.

This discipline matters most when combining dissimilar materials. For example, welding 316L stainless angle to carbon steel sheet piles demands tight Ra control to prevent galvanic acceleration in humid environments. Our clients report 40% fewer field weld repairs when specifying Ra ≤ 0.35 µm on stainless components interfacing with Hot Rolled Steel Sheet Pile systems in retaining wall assemblies.

A recent Middle East desalination plant project required 2,800 tons of ASTM A276 316L angle bars with Ra ≤ 0.28 µm. Using automated orbital TIG, contractors achieved >99.2% first-pass weld acceptance—versus industry average of 92.7%—directly attributable to surface uniformity enabling stable arc length and consistent shielding gas coverage.

Procurement Guidelines: Specifying Ra in Purchase Orders & Technical Data Sheets

Procurement teams must move beyond vague terms like “bright finish” or “mirror polish.” Effective specifications require: (1) explicit Ra upper limit (e.g., “Ra ≤ 0.30 µm, measured per ISO 4288 over 5 mm cutoff length”), (2) sampling frequency (e.g., “1 test per 10 tons or per coil, whichever is less”), and (3) acceptance criteria (e.g., “no single reading >0.33 µm; mean of 10 readings ≤ 0.29 µm”).

Hongteng Fengda embeds Ra compliance into its quality documentation package, including third-party lab reports (SGS, Bureau Veritas) traceable to NIST standards. For OEM partners requiring audit-ready records, we provide digital Ra logs synchronized with coil ID, heat number, and mill test reports—all accessible via our secure portal within 24 hours of shipment.

• Specify Ra *before* quoting—not as an afterthought during inspection
• Require test reports showing measurement method, instrument model, and calibration date
• Define allowable variation: ±0.03 µm is typical for precision grades; ±0.08 µm may suffice for non-aesthetic structural uses
• Link Ra tolerance to end-use environment: Ra ≤ 0.25 µm mandatory for chloride-rich coastal zones (per ISO 9223 C5-M classification)

Financial approvers should note: while Ra ≤ 0.3 µm carries higher unit cost, it reduces total installed cost by eliminating labor-intensive cleaning, cutting inspection time by ~35%, and preventing warranty claims tied to premature corrosion—delivering ROI within 11–14 months for mid-to-large-scale projects.

Frequently Asked Questions

What Ra value is recommended for stainless steel used in food processing equipment?

Ra ≤ 0.25 µm is mandated by 3-A Sanitary Standards for all wetted surfaces. Hongteng Fengda’s EP-finished 316L channels meet 3-A SSI 35-01 requirements and are validated with surface profilometry reports for FDA-submitted dossiers.

Can Ra be improved post-fabrication if initial material exceeds spec?

Yes—but with trade-offs. Electropolishing can reduce Ra by 20–30%, yet adds 7–10 days lead time and increases cost by 12–15%. For structural angles, mechanical polishing risks dimensional deviation (>±0.15 mm on leg thickness), making pre-specification the most reliable strategy.

Do carbon steel products like Hot Rolled Steel Sheet Pile require Ra control?

Not for corrosion performance—but Ra affects interlock sealing efficiency. For U-sheet piles with Larssen locks, Ra ≤ 1.6 µm on interlock faces ensures hydraulic tightness in water-retaining walls (EN 10248 Class 2). We routinely verify this via coordinate measuring machine (CMM) scans on 100% of lock profiles.

Controlling stainless steel surface roughness isn’t about perfection—it’s about predictability. At Hongteng Fengda, Ra specification is embedded in our engineering-to-delivery workflow, ensuring your structural steel performs as designed, welds as specified, and lasts as promised. Whether you’re sourcing 316 angle for corrosive industrial platforms or carbon steel sheet piles for coastal infrastructure, our team helps you define, validate, and guarantee surface integrity—down to the micrometer.

Contact Hongteng Fengda today for a technical consultation, Ra-compliance sample kit, or customized finishing proposal aligned with ASTM, EN, or project-specific requirements.
