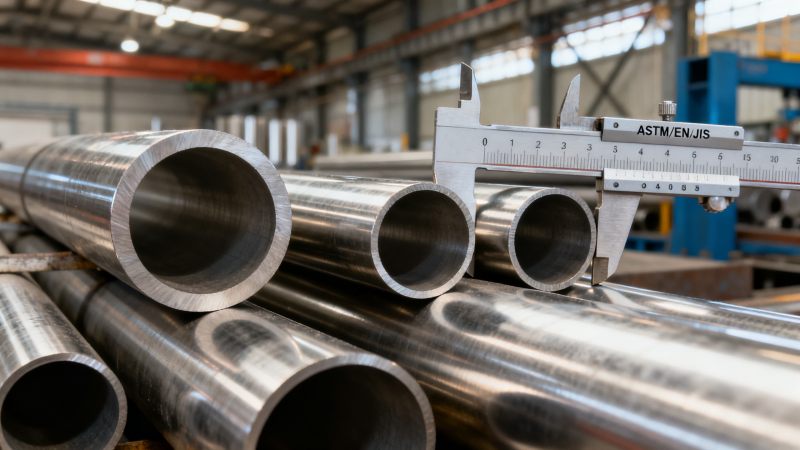

Understanding stainless steel pipe specifications is critical for technical evaluators selecting materials for demanding applications. This guide decodes key parameters like grade, dimensions, wall thickness, and pressure ratings to help professionals make informed decisions. As a leading structural steel manufacturer, Hongteng Fengda provides expert insights into international standards (ASTM, EN, JIS) and performance characteristics that impact your project's success.

What Are the Key Parameters in Stainless Steel Pipe Specifications?

Stainless steel pipe specifications involve multiple technical parameters that determine performance in specific applications. The primary factors include:

• Grade: ASTM A312 covers common grades like 304/L and 316/L, with tensile strength ranging from 515-760 MPa
• Dimensions: Outer diameter (OD) typically spans 1/8" to 72", with wall thickness from 0.028" to 2.0"
• Pressure Ratings: Schedule numbers (5S to 80S) indicate wall thickness and pressure capacity
• Surface Finish: Options include No.1, 2B, BA, and No.4 finishes with Ra values from 0.05-0.5μm

For structural applications requiring high load-bearing capacity, I Shaped Beams offer superior strength-to-weight ratios. These beams comply with international standards including ASTM, EN, and JIS, with flange widths up to 400mm and web thickness reaching 28mm for heavy-duty industrial structures.

How Do International Standards Affect Stainless Steel Pipe Selection?

Different regions follow distinct standardization systems that impact material properties and testing requirements:

Technical evaluators should verify standard compliance based on project location and regulatory requirements. For example, European projects typically require EN 10217-7 certification, while North American applications demand ASTM compliance.

What Are Common Mistakes When Interpreting Pipe Specifications?

Even experienced professionals can misinterpret stainless steel pipe specifications. Here are frequent errors to avoid:

Mistake 1: Overlooking Corrosion Resistance Requirements

Grade 304 (18% Cr, 8% Ni) works for most environments, but chloride-rich applications require 316 (16% Cr, 10% Ni, 2% Mo). The pitting resistance equivalent number (PREN) should exceed 35 for marine applications.

Mistake 2: Confusing Schedule Numbers With Actual Thickness

Schedule 40 pipes have different wall thicknesses at various diameters. For example, a 2" Schedule 40 pipe has 0.154" wall thickness, while 8" Schedule 40 measures 0.322". Always cross-reference with dimensional tables.

How Does Wall Thickness Impact Performance and Cost?

Wall thickness directly affects three critical factors:

1. Pressure Rating: Schedule 80 pipes withstand approximately 50% higher pressure than Schedule 40 at same diameter
2. Weight Calculation: Formula: Weight (kg/m) = (OD - WT) × WT × 0.0248 (for 304 stainless steel)
3. Material Costs: Thicker walls increase raw material usage by 15-30% depending on diameter

For structural components requiring optimized strength-to-weight ratios, consider I Shaped Beams with web thickness up to 28mm and flange widths reaching 400mm. These beams offer superior load distribution while minimizing material usage.

What Are the Critical Questions to Ask Suppliers?

When sourcing stainless steel pipes, technical evaluators should verify these key points:

• Mill test certificates (MTC) with actual chemical composition
• Production process (seamless vs welded) and corresponding standards
• NDT methods applied (100% RT for critical applications)
• Lead times for specific grades and dimensions

As an ISO-certified manufacturer, Hongteng Fengda provides full documentation including MTC, dimension reports, and surface inspection records for all structural steel products.

Why Choose Hongteng Fengda for Your Stainless Steel Requirements?

With 15+ years in structural steel manufacturing, we offer:

• ASTM/EN/JIS compliant products with full traceability
• Customized solutions from angle steel to complex structural components
• Strict quality control with 3-stage inspection process
• 30-day standard lead time for most orders

Contact our technical team to discuss your project's specific stainless steel pipe requirements or request samples for material evaluation. We provide comprehensive support from specification review to final delivery.
