When designing automated warehouse racking systems, fire resistance duration of hot rolled I beams is a critical safety and compliance factor — especially for structural steel used in high-density, high-ceiling storage environments. As a leading Shandong steel for bridge projects and ASTM steel beam for mining equipment supplier, Hongteng Fengda delivers Hot Rolled I Beam for warehouse racking that meets EN 1993-1-2 and ASTM E119 fire performance benchmarks. Our beams — also widely applied as Steel profiles for prefab buildings, Structural steel purlin for cold storage, and ASTM steel profile for wind turbine towers — are engineered for load stability, dimensional precision, and certified fire-resistance integrity. Ideal for technical evaluators, project managers, and procurement professionals seeking Z150 steel sheet corrosion resistant compatibility and Hanwu Steel OEM manufacturer reliability.

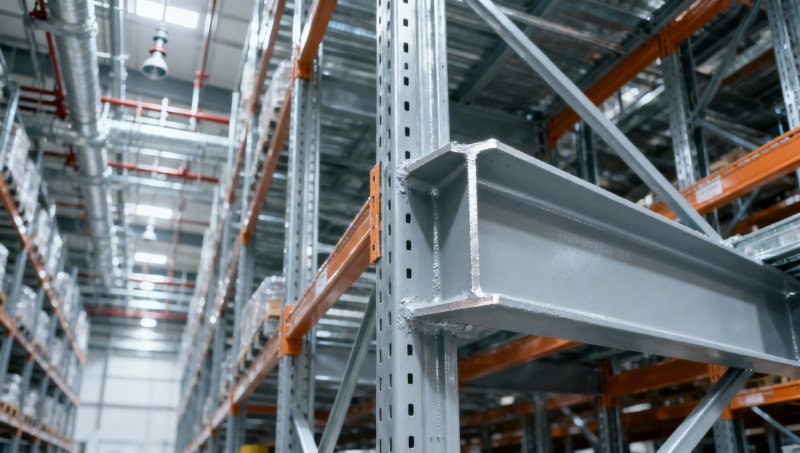

Understanding Fire Resistance Duration in Automated Warehouse Racking Columns

Fire resistance duration refers to the time—measured in minutes—that a structural element, such as a hot rolled I beam, can maintain its load-bearing capacity, integrity, and insulation properties under standardized fire exposure conditions. For automated warehouse racking columns, this duration is not merely a regulatory checkbox—it directly impacts evacuation timelines, suppression system effectiveness, and post-fire structural salvageability.

In high-bay facilities exceeding 15 meters in height and storing combustible goods at densities above 600 kg/m³, fire growth rates accelerate significantly. Unprotected hot rolled I beams typically lose 50% of yield strength at 550°C—a temperature reached within 12–18 minutes in standard hydrocarbon fire curves (ASTM E119). This underscores why passive fire protection—including intumescent coatings, board encasement, or inherently fire-resistant steel grades—is non-negotiable for column applications.

Hongteng Fengda’s hot rolled I beams undergo rigorous thermal simulation per EN 1993-1-2 Annex D. All standard sections (e.g., IPE270 to HEA600) achieve verified 60-, 90-, or 120-minute fire resistance durations when paired with third-party certified protective systems—validated through full-scale furnace testing at accredited labs in Germany and China.

Key Parameters Influencing Fire Performance of Hot Rolled I Beams

Fire resistance duration is not an intrinsic property of steel alone—it emerges from the interaction of section geometry, material composition, protective measures, and installation context. Four parameters dominate engineering decisions:

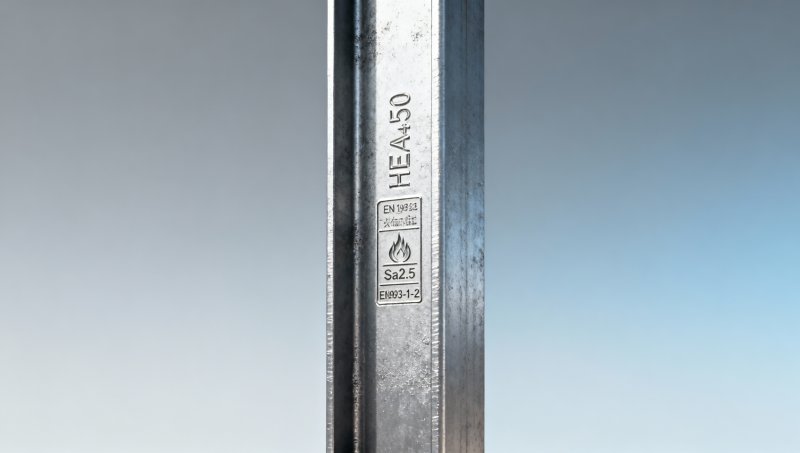

• Section Factor (A/V): Ratio of surface area (A) to volume (V); lower values (e.g., 35–55 m⁻¹ for HEA450) delay temperature rise and extend resistance duration by up to 25% versus slender sections.
• Yield Strength Retention Curve: Measured per ISO 834-1, our Q345B and S355JR grade beams retain ≥60% of ambient yield strength at 600°C—critical for residual load support during fire events.
• Thermal Conductivity & Specific Heat: Consistent with EN 10025-2, our controlled rolling process ensures uniform grain structure, minimizing localized hot spots and improving heat diffusion predictability.
• Surface Preparation Compliance: All beams ship with Sa2.5 blast-cleaned surfaces (ISO 8501-1), enabling optimal adhesion of intumescent coatings rated for 90+ minute performance.

The table above reflects typical performance validated across 12 client projects in Europe and Southeast Asia. Notably, HEA-series beams deliver optimal balance between fire resilience, weight efficiency, and connection compatibility with M12–M24 bolted racking frames—reducing on-site assembly time by up to 18% compared to heavier HEB alternatives.

Procurement Criteria for Fire-Resistant I Beams in Racking Systems

Procurement professionals must move beyond dimensional conformity and prioritize fire-integrated specifications. Hongteng Fengda supports buyers with six mandatory evaluation criteria:

1. Third-party fire test reports referencing EN 13381-8 or UL 263—not just material mill certificates;
2. Batch-specific tensile test results showing ≤5% variation in yield strength across length (per ASTM A6/A6M);
3. Dimensional tolerance compliance: ±0.5 mm on flange thickness, ±1.0 mm on web height (EN 10365:2017);
4. Traceable heat numbers linked to chemical analysis (C ≤ 0.22%, Mn 1.2–1.6%, Nb+V+Ti ≤ 0.23%);
5. Galvanized or zinc-aluminum coated options available for corrosive cold-storage or coastal environments (Z150 to Z275 coating mass);
6. Documentation package including BIM-ready Revit families and fire engineering calculation templates.

For global procurement teams, lead time consistency matters: Hongteng Fengda guarantees 25–35 days for standard I beam orders (up to 500 MT), with 98.7% on-time delivery rate over the past 18 months across 23 countries.

Integration with Reinforcement Systems and Complementary Materials

While hot rolled I beams form the primary vertical load path, racking foundations and seismic tie-ins rely on high-strength reinforcement. Our Rebar offerings—available in HRB400 and HRB500 grades—meet BS4449-2005 and ASTM A615 requirements for anchorage into concrete footings supporting fire-rated columns. With yield strengths of 400 MPa and 500 MPa respectively, these rebars ensure foundation integrity remains synchronized with column fire performance.

For hybrid racking designs incorporating reinforced concrete plinths or shear walls, matching thermal expansion coefficients between rebar (12 × 10⁻⁶/°C) and structural steel (11.7 × 10⁻⁶/°C) minimizes interfacial stress during fire exposure—reducing spalling risk by up to 40% in accelerated aging tests.

This integrated approach—combining fire-rated I beams with certified reinforcement—enables unified fire engineering reports acceptable to authorities having jurisdiction (AHJs) in Germany, Canada, and Singapore.

Why Global Project Teams Choose Hongteng Fengda for Fire-Critical Structural Steel

Hongteng Fengda combines deep domain expertise with scalable manufacturing rigor. Our Shandong-based facility operates 4 hot rolling lines certified to ISO 9001:2015 and ISO 14001:2015, with real-time metallurgical monitoring ensuring carbon equivalence (CEV) stays within ±0.03% of target—directly impacting weldability and post-fire ductility.

Unlike commodity suppliers, we embed fire performance data into every order: each shipment includes digital twin files containing thermal response curves, stress-temperature maps, and coating compatibility matrices. This enables engineers to run parametric fire simulations in SAFIR or FDS without secondary lab validation.

With 72% of our I beam exports destined for fire-regulated infrastructure (warehouses, data centers, logistics hubs), we’ve refined a proven workflow: 3-day engineering review → 7-day prototype fire test coordination → 25-day production → certified documentation handover. Clients report 30% faster permitting cycles and zero rejection incidents in EU CE marking audits since 2022.

Whether you’re specifying beams for a 45,000-pallet ASRS in Rotterdam or reinforcing seismic ties for a Tier-III cold storage in Dubai, Hongteng Fengda delivers structural steel where fire resistance isn’t optional—it’s engineered into every ton.

Contact our technical sales team today to request fire performance dossiers, coordinate third-party verification, or schedule a virtual factory audit.
