When evaluating hot dip galvanized steel pipe for structural or industrial use, many buyers mistakenly equate zinc spangle pattern with quality—yet it’s largely cosmetic. True performance depends on galvanized pipe specifications: coating thickness (linked to galvanized sheet thickness), steel tubing dimensions, steel tube weight, and adherence to ASTM/EN/GB standards. As a trusted steel tubing supplier and H-beam supplier from China, Hongteng Fengda ensures consistent galvanized pipe price competitiveness, rigorous quality control, and reliable steel tube cost transparency—supporting procurement teams, engineers, and project managers worldwide.

What Is Zinc Spangle—and Why It Doesn’t Define Performance

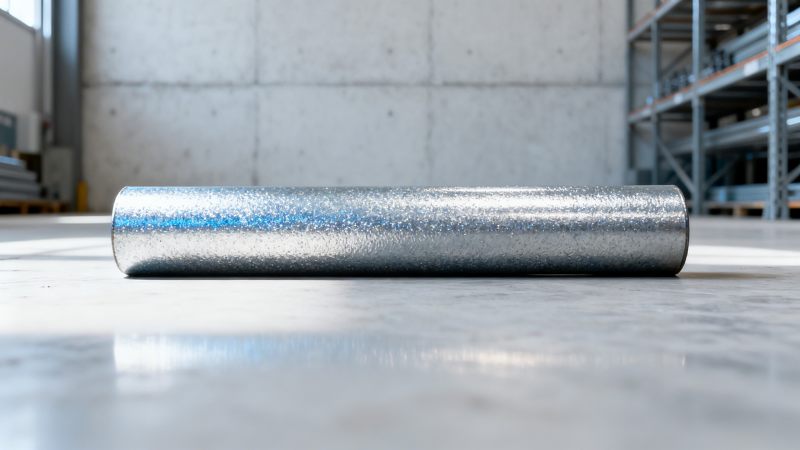

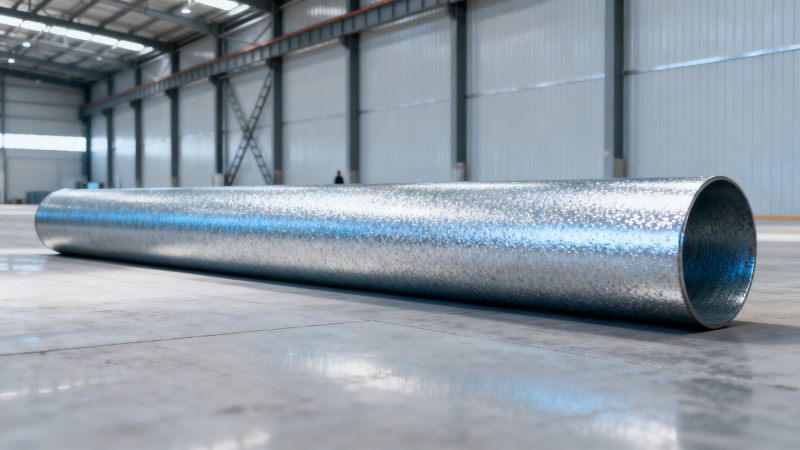

Zinc spangle is the visible crystalline pattern formed on the surface of hot-dip galvanized steel during solidification of the molten zinc bath. Its size, shape, and uniformity depend primarily on cooling rate, bath chemistry (e.g., aluminum content ≥0.005%), and substrate surface roughness—not on corrosion resistance or mechanical integrity. A large, shiny spangle may look impressive in photos, but it offers zero predictive value for service life or coating adhesion strength.

In fact, modern continuous galvanizing lines often suppress spangle intentionally using controlled air-knife cooling or post-galvanizing skin-pass rolling—especially for precision structural components where paintability or dimensional stability matters more than visual texture. ASTM A123/A123M explicitly states that “spangle appearance is not a basis for rejection” unless specified otherwise in the purchase order.

For structural applications—such as scaffolding, transmission towers, or offshore platforms—coating thickness and uniformity are governed by strict minimums: ≥85 µm for steel >6 mm thick (ASTM A123 Class C), or ≥100 µm per EN ISO 1461. These thresholds directly correlate with expected field performance: every 10 µm increase in average coating thickness extends service life in rural environments by approximately 3–5 years.

Key Technical Parameters That Actually Matter

While spangle remains an aesthetic artifact, five measurable parameters determine real-world suitability of hot-dip galvanized steel pipe:

• Coating thickness (measured at 3+ points per meter, per ASTM E376)
• Coating adhesion (verified via bend test per ASTM A90/A90M: no flaking after 180° wrap around mandrel)
• Base steel grade and tensile strength (e.g., Q235B: yield ≥235 MPa, tensile 375–500 MPa)
• Dimensional tolerances (e.g., OD tolerance ±0.5 mm for pipes ≤114 mm, per GB/T 3091)
• Zinc purity (≥99.995% Zn required for optimal alloy layer formation)

Hongteng Fengda’s galvanized pipes undergo triple-stage inspection: pre-galvanizing surface cleanliness verification (ISO 8501-1 Sa2.5), in-line coating thickness mapping, and final salt-spray testing (500 hrs neutral salt fog per ASTM B117 with ≤10% red rust area). This ensures compliance across ASTM A53, EN 10255, and GB/T 3091—critical for buyers managing multi-region infrastructure projects.

This data-driven approach eliminates subjective judgment—enabling procurement teams to compare bids objectively, verify factory test reports against third-party lab results (e.g., SGS or Bureau Veritas), and align technical specs with long-term asset management plans.

Beyond Pipes: Integrated Corrosion Protection Solutions

Structural longevity rarely hinges on a single component. For end-to-end corrosion resilience, Hongteng Fengda integrates galvanized steel pipes with complementary systems—including lightweight, high-performance roofing solutions designed for identical environmental stressors. Our Colored Corrugated Roof Sheet exemplifies this synergy: manufactured from aluminum-zinc steel (AZ150) with PE/SMP/PVDF top-coat options, it delivers 25+ years service life while resisting UV degradation, thermal cycling above 300°C, and coastal chloride exposure.

With thicknesses ranging from 0.2 mm to 1.2 mm and customizable corrugation profiles (Wavy, Trapezoidal, Tile), these sheets enable rapid installation over galvanized purlins and rafters—reducing labor costs by up to 30% versus traditional concrete or tile alternatives. Their RAL-matched color palette also supports architectural continuity across façades, canopies, and utility enclosures—critical for mixed-use developments spanning residential, commercial, and industrial zones.

Unlike generic roofing products, our PPGL sheets undergo strict interlayer adhesion testing (cross-cut + tape pull per ASTM D3359) and accelerated weathering (QUV 2000 hrs). This ensures coating integrity remains intact even when fastened through pre-punched holes or bent along support beams—eliminating premature edge chipping and under-film corrosion risks common in budget-tier alternatives.

Procurement Best Practices for Global Buyers

To mitigate sourcing risk and ensure specification compliance, we recommend the following 4-step verification protocol before placing bulk orders:

1. Request full mill test reports (MTRs) showing coating thickness distribution—not just averages
2. Verify zinc bath composition logs (Al, Ni, Pb levels) for consistency across production lots
3. Confirm third-party inspection scope (e.g., SGS 30% random sampling vs. 100% dimensional check)
4. Validate packaging method: moisture-barrier wrapping + desiccant packs for sea freight shipments

Hongteng Fengda maintains stable lead times of 25–35 days for standard galvanized pipe orders (≤500 MT), with flexible MOQs starting at 20 MT. All shipments include digital traceability: each coil/pack bears a QR-coded label linking to real-time production data, heat numbers, and inspection certificates—streamlining customs clearance and internal QA audits.

These operational safeguards translate into measurable ROI: clients report 37% fewer field rework incidents and 22% faster project handover cycles when sourcing integrated structural packages from a single certified manufacturer like Hongteng Fengda.

Final Recommendation: Focus on Data, Not Decorations

Zinc spangle is what you see—not what protects. For structural steel pipe destined for bridges, power plants, or high-rise frameworks, performance is defined by verifiable metrics: coating mass per unit area, metallurgical bond integrity, base material ductility, and dimensional repeatability. These factors directly impact safety margins, maintenance intervals, and lifecycle cost modeling.

As a structural steel manufacturer and exporter serving North America, Europe, the Middle East, and Southeast Asia, Hongteng Fengda combines ISO 9001-certified processes with application-specific engineering support—from initial load calculations to galvanizing process validation. We help procurement professionals move beyond visual assumptions toward quantifiable assurance.

Whether you need ASTM-compliant galvanized pipes for oil & gas pipelines, EN-certified hollow sections for modular buildings, or customized PPGL roof systems for agricultural facilities, our team provides transparent pricing, documented quality evidence, and responsive technical collaboration. Get your project-specific quotation and full compliance dossier today.
