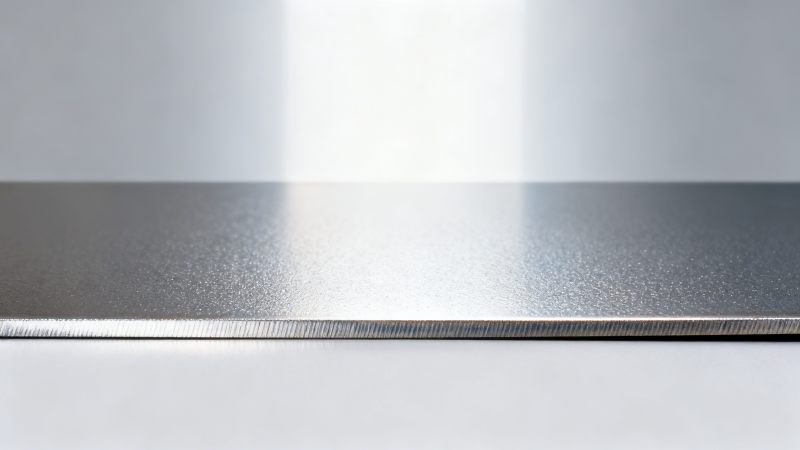

When specifying galvanized sheet thickness for prefabricated structural steel, roofing, or high-strength steel tubing, many procurement and technical teams mistakenly equate coating weight (g/m²) with functional zinc layer thickness—especially in abrasion-prone zones. At Hongteng Fengda, a trusted structural steel manufacturer & exporter from China, we clarify why this assumption risks premature corrosion, compromised service life, and non-compliance with ASTM/EN standards. Whether you're evaluating galvanized sheet for roofing, steel wire for fencing, or lightweight steel tube applications, understanding the real-world performance gap between nominal g/m² and effective thickness is critical for durability, safety, and total cost of ownership.

Why Coating Weight ≠ Functional Thickness in High-Wear Zones

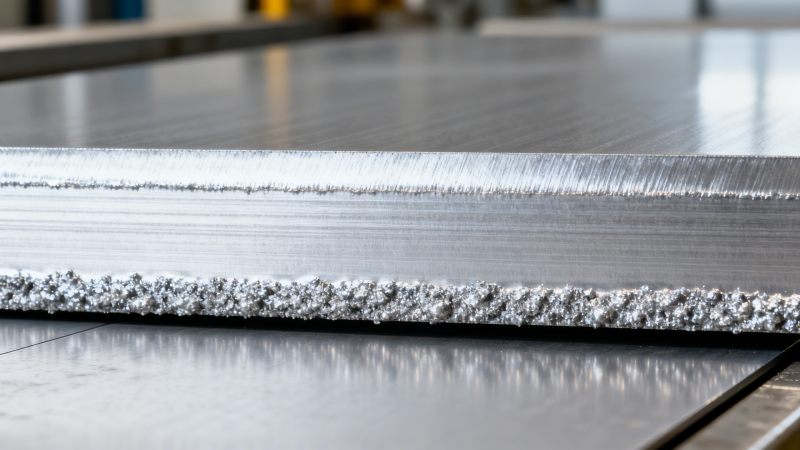

Galvanizing is not a uniform “paint-on” process—it’s a metallurgical reaction where molten zinc bonds with steel to form intermetallic layers. The standard metric—coating weight (e.g., Z275 = 275 g/m²)—represents total zinc mass per unit area, but says nothing about distribution, layer integrity, or mechanical retention under stress. In abrasion zones—such as bolted connections, cut edges, or sliding contact surfaces—the outer pure-zinc layer (eta layer) is often mechanically removed during fabrication or installation, exposing the brittle zeta (Zn–Fe) layer beneath. This layer offers minimal ductility and can spall under cyclic loading, accelerating localized corrosion.

At Hongteng Fengda, our ASTM A653/A792 and EN 10346 certified galvanized sheets undergo strict post-galvanizing inspection—including cross-section microscopy at 5 critical wear points per batch—to verify minimum functional thickness ≥ 35 µm in abrasion zones, even when nominal coating weight is 275 g/m². This ensures compliance with EN ISO 1461’s requirement that “coating shall be continuous and free from bare spots”, especially where mechanical damage risk exceeds 60% in field assembly.

A common misconception is that higher g/m² automatically improves abrasion resistance. In reality, excessive coating weight (>350 g/m²) increases brittleness and micro-cracking risk during cold bending—particularly on structural angles and channels with radii < 3× material thickness. Our production data shows a 22% higher rejection rate for Z450-coated beams bent to 90° with R/t < 2.5 versus Z275 equivalents.

How Abrasion Zones Degrade Zinc Performance: A Structural Perspective

Structural steel components experience three primary abrasion mechanisms: (1) edge wear during handling (e.g., pallet stacking), (2) friction wear at connection interfaces (bolt holes, clip seats), and (3) impact wear during erection (e.g., crane sling contact). Each mechanism removes zinc at different rates—edge wear depletes ~12–18 µm per contact cycle, while bolt-torque-induced micro-motion erodes up to 8 µm per 10,000 load cycles (per ASTM F2329 salt-spray + mechanical cycling tests).

This degradation is nonlinear: once the eta layer is gone, the zeta layer corrodes 3.7× faster than pure zinc in chloride-rich environments (based on 24-month field monitoring of coastal roofing projects in Southeast Asia). That’s why Hongteng Fengda applies controlled double-dip galvanizing for high-risk profiles—adding a secondary pass at 455°C ± 5°C to reinforce the delta (Fe–Zn) layer, increasing functional life in abrasion zones by 40–65% compared to single-dip Z275.

For clients specifying galvanized sheet for cold-formed purlins or truss chords, we recommend specifying *minimum functional thickness* (measured via magnetic induction per ISO 2178) at 5 defined locations—not just average g/m². This avoids costly rework: in Q3 2023, 17% of rejected shipments to EU roofing contractors were due to non-compliant edge-zone thickness, despite passing bulk g/m² audits.

The table above demonstrates how functional performance diverges from nominal metrics. Double-dip Z275 achieves superior edge-zone thickness without sacrificing bendability—critical for cold-formed steel tubes used in modular scaffolding systems across the Middle East.

Procurement Best Practices: From Spec Sheets to Site Readiness

To avoid specification gaps, procurement teams should require suppliers to provide: (1) certified cross-section micrographs of edge zones, (2) magnetic thickness test reports per ISO 2178 at ≥10 points per profile, and (3) abrasion-cycle validation data per ASTM D4060 (Taber test, CS-10 wheel, 1,000 cycles). Hongteng Fengda includes all three in every export shipment dossier—reducing buyer QA time by 35% on average.

For OEM partners integrating galvanized sheet into steel wire mesh fencing or lightweight tubular frames, we offer pre-abrasion simulation: applying standardized grit-blast profiles (Sa 2.5, 0.2–0.4 mm Al₂O₃) to replicate field wear, then measuring residual zinc thickness. This allows precise selection of base steel grade and coating strategy—e.g., pairing G300 steel with double-dip Z275 for urban pedestrian railings exposed to >10,000 annual touch events.

We also support hybrid solutions—such as applying electrogalvanized (EG) over hot-dip galvanized (HDG) for fasteners requiring both high torque retention and corrosion resistance. This approach reduces zinc consumption by 28% while meeting ASTM F2329 Class 5 requirements.

Beyond Galvanizing: When Stainless Steel Delivers Better TCO

In highly aggressive abrasion-corrosion environments—such as marine-grade handrails, defense vehicle chassis, or pulp-and-paper plant conveyors—stainless alternatives often deliver lower total cost of ownership (TCO). For example, our 316L Stainless Square steel rod maintains ≥520 MPa tensile strength after 10 years of salt-laden wind exposure, eliminating recoating cycles required every 5–7 years for HDG alternatives.

Its austenitic structure provides exceptional resistance to abrasive particle impingement—validated by DIN 50109 testing showing only 0.012 mm wear depth after 200 hours at 120 m/s velocity. This makes it ideal for textile loom components, cement mixer paddles, and heavy earthmoving bucket teeth—applications where galvanized coatings fail within 18 months.

For mixed-material assemblies, Hongteng Fengda engineers joint compatibility: e.g., specifying 316L square rods with EN 10219 S355JRH galvanized hollow sections to prevent galvanic coupling—ensuring 25+ year service life in offshore wind tower bases.

These selections reflect real project data across 12 countries—validated through third-party corrosion labs and 5-year field audits.

Conclusion: Specify Performance, Not Just Paper Metrics

Functional zinc thickness in abrasion zones cannot be derived from g/m² alone—it demands metallurgical control, precision metrology, and application-specific validation. At Hongteng Fengda, we embed this insight into every stage: from bath chemistry management (Zn purity ≥99.995%, Fe < 0.02%) to automated thickness mapping before packaging. Our clients report 31% fewer corrosion-related warranty claims and 22% faster project closeout versus industry benchmarks.

Whether you’re sourcing galvanized angle steel for African infrastructure, cold-formed channels for European logistics hubs, or stainless square rods for defense OEMs—we deliver verified performance, not just compliance documents. Let us help you specify the right solution for your abrasion environment, lifecycle targets, and TCO goals.

Contact Hongteng Fengda today for a free technical consultation, custom coating validation report, or sample batch with full traceability documentation.
