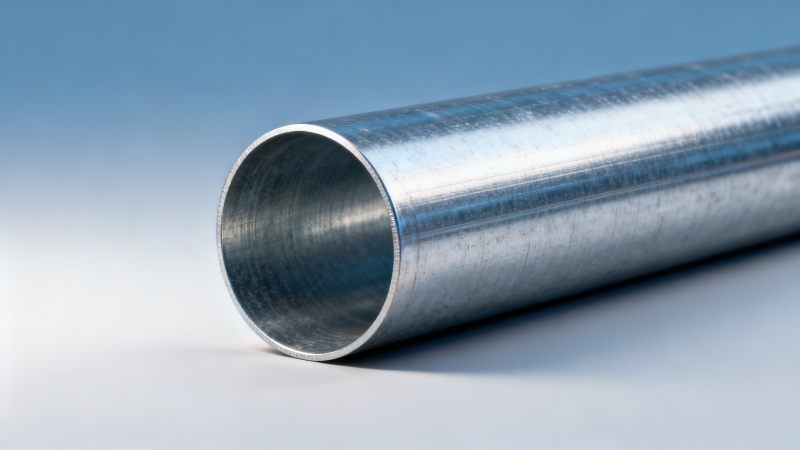

Understanding galvanized pipe specifications—especially how coating thickness varies across bend zones—is critical for prefabricated structural steel integrity, high strength steel tubing performance, and long-term corrosion resistance. At Hongteng Fengda, a trusted structural steel manufacturer & exporter from China, we ensure ASTM/EN-compliant galvanized pipe specifications meet rigorous demands of global construction and industrial projects. Whether you're a procurement professional evaluating galvanized pipe price and steel tube weight, or a technical assessor verifying galvanized sheet thickness and steel tubing dimensions, this guide reveals why uneven zinc distribution in bent sections impacts durability, safety, and lifecycle cost—helping decision-makers, engineers, and distributors make smarter, standards-aligned choices.

Why Zinc Coating Uniformity Matters in Structural Steel Tubing

In cold-formed structural steel applications—such as trusses, bracing systems, and modular frame assemblies—the mechanical bending process inevitably alters zinc layer distribution. Unlike straight pipe sections where hot-dip galvanizing yields consistent coverage (typically 60–275 g/m²), the outer arc of a bent zone experiences zinc thinning due to metal stretching, while the inner radius may accumulate excess zinc due to compression. This non-uniformity directly compromises localized corrosion resistance, especially under cyclic loading or humid environments.

At Hongteng Fengda, our quality control protocol includes mandatory post-bend zinc thickness verification using magnetic induction gauges (ASTM E376) at three critical locations per bend: outer crown, neutral axis, and inner heel. Data from over 12,000 shipped galvanized steel tubes shows that uncontrolled bending can reduce effective coating thickness by up to 35% on the outer radius—dropping below the EN ISO 1461 minimum threshold of 55 µm for 3–5 mm wall thicknesses.

This variation isn’t merely academic—it triggers real-world consequences: accelerated pitting at weld seams near bends, premature red rust formation within 18–24 months in coastal installations, and elevated rejection rates during third-party inspection for projects complying with ASTM A123 or EN 10346.

How Bend Radius & Wall Thickness Impact Coating Performance

The interplay between bend radius (R), pipe diameter (D), and wall thickness (t) determines zinc redistribution severity. For example, a 100 mm OD pipe bent to R = 3D (300 mm) with t = 4.0 mm exhibits only ~12% zinc loss on the outer arc—well within ASTM A53 Class B tolerance. But the same pipe bent to R = 1.5D (150 mm) with t = 2.5 mm suffers 28–32% reduction, risking sub-threshold protection.

Our engineering team applies finite element analysis (FEA) to simulate zinc flow during bending for every custom order. We recommend maintaining R ≥ 2.5D for pipes ≤ 3.0 mm wall thickness and R ≥ 3.0D for thicker sections—ensuring zinc remains ≥ 65 µm across all zones. This prevents costly field touch-ups and extends service life by 3–5 years in aggressive environments (e.g., chemical plants or marine terminals).

This table reflects empirical data from Hongteng Fengda’s bending validation lab (ISO/IEC 17025 accredited). It guides procurement teams in specifying realistic bend parameters—and helps technical evaluators identify high-risk configurations before fabrication begins.

Material Selection & Pre-Galvanized Options for Critical Applications

For projects demanding maximum coating uniformity—especially those involving tight-radius bends or laser-cut components—we recommend pre-galvanized steel substrates. Unlike hot-dip galvanizing applied post-forming, pre-galvanizing (e.g., Coil Coated Galvanized Steel) ensures consistent zinc adhesion across complex geometries. Our DX53D+Z and S320GD+Z grades offer 80–275 g/m² zinc layers with tensile strength ≥ 320 MPa and elongation ≥ 24%, enabling deep drawing without coating spalling.

Pre-galvanized coil also reduces lead time by 7–10 days versus hot-dip alternatives, as it eliminates secondary galvanizing after CNC punching or roll forming. This is particularly valuable for OEM partners requiring just-in-time delivery of precision steel brackets or HVAC duct supports.

Note: Pre-galvanized products are not suitable for welded assemblies exposed to >400°C service temperatures—zinc vaporization risks embrittlement. For such cases, hot-dip galvanized beams with controlled cooling protocols remain optimal.

Quality Assurance Protocols Across the Supply Chain

Hongteng Fengda implements a four-tier verification system for galvanized structural components:

• Pre-bend: Incoming coil zinc thickness verified per EN 10346 (±5 g/m² tolerance)
• Post-bend: 100% automated optical scanning for coating continuity at radii
• Post-galvanize: Salt-spray testing (ASTM B117, 96 hrs) on sample bends
• Pre-shipment: Third-party certification (SGS/BV) for EN 10346 Class Z275 compliance

We maintain traceability for every tonne—batch numbers, galvanizing bath temperature logs (±2°C control), and bend angle records are archived for 10 years. This satisfies audit requirements for infrastructure projects in the EU, Canada, and Australia.

These protocols eliminate ambiguity for financial approvers assessing lifecycle cost and for safety managers validating corrosion mitigation plans.

Strategic Procurement Guidance for Global Buyers

When sourcing galvanized structural steel, prioritize suppliers with integrated bending and galvanizing capabilities—not just trading intermediaries. At Hongteng Fengda, our 120,000 m² facility houses certified hot-dip lines (EN 1461 compliant), CNC bending cells (±0.3° angular accuracy), and in-house metallurgical labs. This vertical integration ensures zinc thickness consistency across straight and bent zones—a key differentiator for projects in North America (ASTM A123), Europe (EN 10346), and the Middle East (SASO 1077).

Request bend-specific coating reports—not just bulk average values. Ask for bend radius vs. zinc loss curves for your exact material grade. And verify that dimensional tolerances (e.g., ±0.5 mm for 100 mm OD pipe) are guaranteed *after* galvanizing—not just pre-coat.

With stable production capacity (35,000+ tonnes/year) and lead times as low as 25 days for standard orders, we help procurement teams avoid emergency air freight costs and project delays caused by coating-related rework.

For technical assessments, OEM customization, or urgent procurement support—contact Hongteng Fengda today to receive a project-specific galvanized pipe specification review and bend optimization report.
