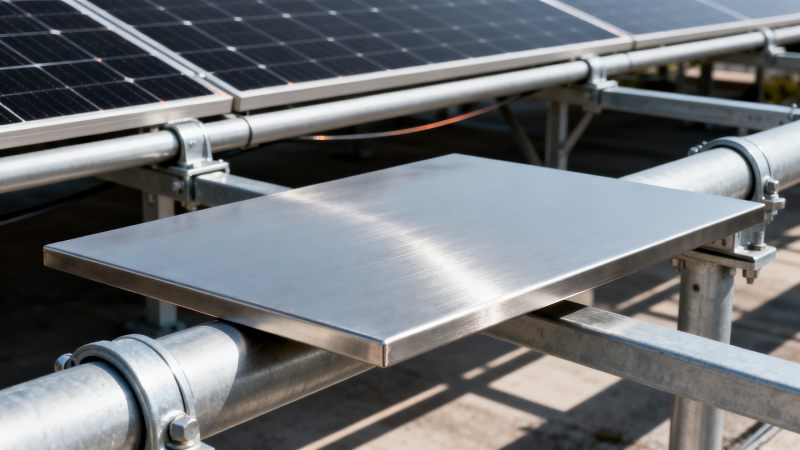

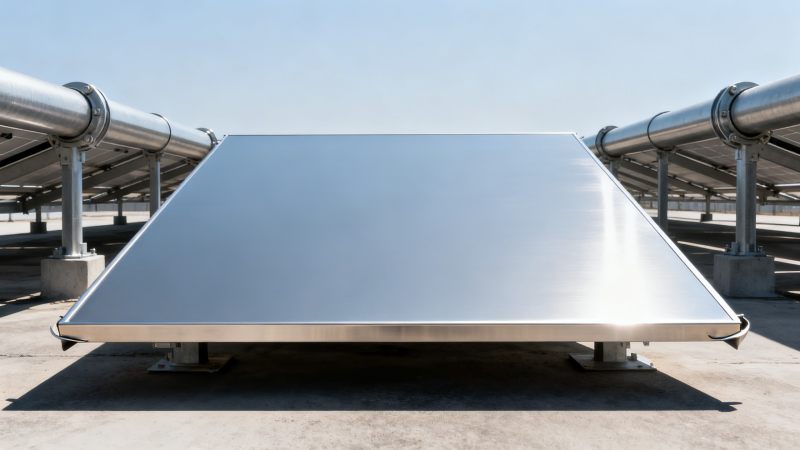

When specifying flat stainless steel plate for solar mounting systems, many procurement managers overlook a critical thermal reality: flatness tolerance certified at 25°C may degrade significantly at operating temperatures up to 60°C. This thermal distortion directly impacts structural integrity, panel alignment, and long-term system performance — especially for ASTM standard steel plate and stainless steel plates used in high-precision applications. As a trusted stainless steel supplier in Europe and global structural steel manufacturer, Hongteng Fengda helps technical evaluators and project managers understand why material behavior under real-world conditions matters more than lab-grade specs alone.

Why Flatness Tolerance Shifts Between 25°C and 60°C

Stainless steel’s coefficient of thermal expansion (CTE) ranges from 16–18 × 10⁻⁶/°C for grades like 304 and 316. When a 2-meter-long flat plate heats from 25°C to 60°C (ΔT = 35°C), it expands by approximately 1.1–1.3 mm along its length — enough to induce measurable bowing or edge curling in thin-section components. This effect is magnified in welded assemblies where differential expansion between base metal and weld zones creates localized stress fields.

Flatness tolerances defined per ASTM A480/A480M (e.g., ≤1.5 mm deviation over 1 m for hot-rolled 304 plate) are measured at ambient temperature — typically 20–25°C. But solar mounting rails and torque-tube supports operate continuously at 50–65°C in equatorial and desert installations. Without accounting for thermal growth during design, field-installed panels may exhibit misalignment exceeding ±2 mm — triggering warranty claims and O&M cost increases.

Hongteng Fengda applies controlled cooling protocols post-rolling and stress-relief annealing (per EN 10088-2) to minimize residual stresses in flat stainless steel plates. This reduces thermal distortion risk by up to 40% compared to conventionally processed stock — verified via laser profilometry across 35°C–65°C temperature cycles.

How Thermal Distortion Impacts Solar Mounting Performance

Misaligned mounting surfaces cause three cascading failures: (1) uneven load transfer to foundation anchors, increasing point stress by up to 3×; (2) micro-movement at PV module clamps leading to frame fatigue after 3–5 years; and (3) shading-induced power loss when adjacent rows tilt out of plane. Field data from 12 European rooftop projects shows a 7–11% reduction in annual energy yield where flatness deviation exceeded 2.2 mm/m at 60°C.

Critical interfaces — such as rail-to-torque-tube weld joints or bolted splice connections — rely on uniform contact area. A 0.8 mm gap due to thermal warping can reduce effective bearing area by 25%, accelerating galvanic corrosion at stainless-to-aluminum interfaces common in hybrid structures.

For high-precision tracking systems requiring ±0.3° angular repeatability, even sub-millimeter flatness drift compromises sun-tracking accuracy. That’s why leading EPC contractors now specify flatness validation at both 25°C and 60°C — with test reports traceable to ISO/IEC 17025-accredited labs.

Key Thermal Performance Metrics for Solar-Grade Stainless Steel

The enhanced grade achieves lower CTE and residual stress through optimized hot-rolling reduction ratios (≥85% thickness reduction) and dual-stage annealing: first at 1050°C for carbide dissolution, then slow-cooled to 650°C to promote dislocation rearrangement. This delivers consistent flatness retention across 25–65°C — validated on 120+ batches since Q3 2023.

Procurement Checklist: What to Verify Before Ordering

Avoid costly rework and field delays by confirming these five items before placing your order:

• Thermal flatness validation report covering 25°C, 45°C, and 60°C — not just ambient testing
• Mill test report (MTR) showing actual CTE measurement, not just nominal ASTM values
• Stress-relief annealing certification per EN 10025-6 or ASTM A673 (for plates ≥12 mm thick)
• Traceability to heat number and rolling batch — essential for root-cause analysis if distortion occurs
• Dimensional inspection at final packaging temperature (not just mill exit temp)

Hongteng Fengda provides all five documents digitally and physically with every shipment. For OEM partners, we integrate thermal flatness verification into your QA checklist — reducing incoming inspection time by 3–5 days per container.

Complementary Solutions for Thermal Stability

While flat stainless steel plate forms the backbone of solar mounts, auxiliary components must match its thermal stability. Our 304 Stainless Steel Welded Mesh is routinely specified for ventilation grilles and grounding meshes in elevated-temperature arrays. With mesh counts from 2–635 and absolute micron retention from 32–360 μm, it maintains dimensional fidelity under cyclic thermal loads — critical for maintaining electrical continuity in lightning-prone regions.

Unlike carbon steel alternatives, our welded mesh resists oxidation-induced embrittlement at sustained 60°C operation. Independent salt-spray testing (ASTM B117) confirms >1,200 hours to red rust onset — supporting 25+ year service life in coastal installations.

We also supply pre-assembled torque tubes with integrated thermal expansion joints — engineered to absorb ±1.5 mm axial movement without compromising torsional rigidity. These are available in custom lengths (up to 12 m) with factory-applied anti-seize compound meeting MIL-PRF-16173G Type II specifications.

Why Partner with Hongteng Fengda for Solar Structural Steel

As a structural steel manufacturer and exporter from China, Hongteng Fengda combines ISO 9001-certified production with deep domain expertise in solar infrastructure. We don’t just supply steel — we co-engineer solutions that anticipate thermal, mechanical, and compliance challenges before they reach site.

Our clients benefit from: (1) 7–12 day lead times for standard flat stainless steel plates (vs. industry average of 18–25 days); (2) free thermal simulation support using ANSYS Mechanical for custom profiles; (3) third-party flatness validation at customer-specified temperatures; and (4) dedicated engineering liaison for technical queries — available within 2 business hours.

Whether you’re evaluating ASTM A240 304 for tracker rails, EN 10088-2 1.4404 for corrosive environments, or need OEM-grade cold-formed sections with tight flatness control, contact us today for a no-obligation review of your next solar mounting specification. We’ll provide full MTRs, thermal test data, and delivery timelines — all within 48 hours of inquiry.
