As maintenance personnel responsible for aging infrastructure, detecting fatigue cracks in steel beams is critical to ensuring structural integrity and public safety. Over time, continuous traffic loads compromise these components.

Environmental stress can further compromise these vital components, making early identification absolutely essential for safe operation. This comprehensive guide explores effective inspection techniques and advanced monitoring strategies.

These strategies help you accurately assess steel beams, prevent catastrophic failures, and efficiently extend the operational lifespan of your bridge projects. Let us dive into the practical methodologies.

What Are the Most Common Locations for Fatigue Cracks in Steel Beams?

Understanding where fatigue cracks typically initiate is the first step in effective bridge inspection. Fatigue cracks rarely occur in the middle of a uniform steel section.

They almost always start at locations with high stress concentrations. These are usually geometric discontinuities where the stress flow is disrupted during heavy traffic loading.

Weld toes and weld terminations are primary suspects. The heat-affected zone near these welds is highly susceptible to microscopic crack initiation under cyclic loading.

Bolt holes in spliced connections also experience severe stress. Fretting fatigue can occur between the connected plates, leading to cracks radiating from the bolt holes.

Stiffener connections present another high-risk area. When transverse stiffeners are welded to the tension flange of steel beams, unintended welds can create crack-prone details.

Furthermore, copes and cutouts in the web are critical. These fabricated openings drastically alter the stress distribution, making the re-entrant corners highly vulnerable to cracking.

Inspectors must pay special attention to cross-frame connection plates. Distortion-induced fatigue often causes cracks in these secondary members due to unexpected out-of-plane bending.

Identifying these high-stress zones allows maintenance teams to prioritize their inspection efforts. Focusing on these specific details significantly improves the probability of early crack detection.

Additionally, the web gap regions between the flanges are highly vulnerable. Out-of-plane distortion in these unbraced lengths frequently initiates fatigue cracks at the web-to-flange welds.

Which Non-Destructive Testing (NDT) Methods Work Best for Field Inspections?

Selecting the right non-destructive testing method is crucial for accurate field inspections. Visual testing remains the foundational step for any comprehensive bridge evaluation process.

A detailed visual inspection can reveal surface-breaking cracks, corrosion, and deformation. It requires trained eyes and sometimes magnifying glasses to spot early-stage fatigue indicators.

However, visual testing cannot detect subsurface flaws. For surface-breaking cracks in ferromagnetic steel beams, magnetic particle testing is highly effective and widely used in the field.

Magnetic particle testing involves magnetizing the steel and applying iron particles. Cracks create leakage fields that attract these particles, forming a visible indication of the flaw.

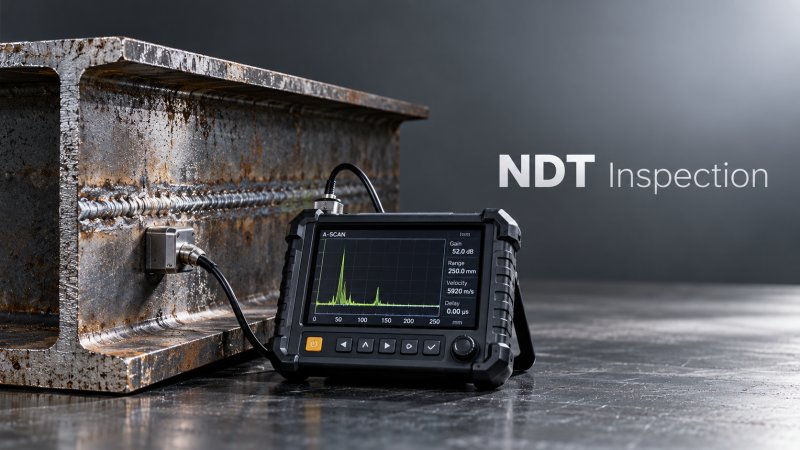

When dealing with non-magnetic materials or seeking deeper subsurface defects, ultrasonic testing becomes indispensable. This method uses high-frequency sound waves to detect internal discontinuities.

Ultrasonic testing requires skilled technicians to interpret the wave reflections accurately. It provides excellent depth resolution, allowing inspectors to measure the exact size of internal cracks.

Liquid penetrant testing is another valuable tool for non-magnetic components. It involves applying a fluorescent or visible dye to the surface, which seeps into open cracks.

After applying a developer, the dye is drawn out, making the crack pattern clearly visible under appropriate lighting conditions. This method is highly sensitive to fine surface cracks.

Advanced techniques like phased array ultrasonic testing offer even greater capabilities. They provide real-time cross-sectional images, making it easier to characterize complex crack geometries in steel beams.

Acoustic emission monitoring is also gaining traction for continuous structural health monitoring. It listens to the high-frequency stress waves emitted by actively growing cracks under live traffic loads.

Combining these methods ensures a robust inspection protocol. Routine visual checks should be supplemented by periodic advanced NDT to catch hidden fatigue damage before it becomes critical.

How Should Maintenance Personnel Evaluate Crack Severity and Growth?

Detecting a crack is only half the battle; evaluating its severity dictates the necessary maintenance response. Not every detected crack requires immediate structural intervention or repair.

Inspectors must first determine if the crack is active or arrested. This is typically done by installing tell-tale gauges across the crack and monitoring them over several thermal cycles.

If the gauge breaks, the crack is active and growing under traffic or temperature variations. Arrested cracks may simply require monitoring and protective coating to prevent corrosion.

For active cracks, measuring the length and depth is critical. Crack depth is usually estimated using ultrasonic testing or alternating current field measurement techniques in the field.

Fracture mechanics principles help engineers evaluate the remaining fatigue life. By knowing the crack size, stress range, and material toughness, they can calculate the critical crack length.

If the calculated critical length is much larger than the detected crack, the structure may still be safe for a defined period under restricted loading conditions.

Regular monitoring intervals should be established based on the crack growth rate. Active cracks in high-stress zones might require monthly inspections, while minor cracks need less frequent checks.

Documenting every crack's location, orientation, and dimensions is essential. Maintaining a detailed historical database allows engineers to track growth trends and make informed, data-driven maintenance decisions.

Ultimately, evaluating crack severity bridges the gap between simple detection and actionable maintenance planning. It ensures that resources are allocated efficiently to the most critical structural threats.

Engineers also consider the residual stress fields around the crack. High tensile residual stresses from welding can accelerate crack propagation, necessitating more aggressive monitoring or immediate intervention strategies.

When Is It Time to Replace or Reinforce the Structural Members?

Deciding between repairing a cracked steel beam or replacing it entirely is a complex engineering judgment. The decision heavily depends on the crack's location, size, and accessibility.

For minor cracks in non-critical areas, drill stopping is a common temporary fix. Drilling a hole at the crack tip blunts the sharp edge, reducing the stress concentration.

This arrests the crack growth temporarily but does not restore the original strength. It buys time for planning a more permanent rehabilitation strategy during scheduled bridge closures.

Welded repairs can restore structural integrity but are risky in the field. The heat from welding can alter the material properties and introduce new residual stresses, potentially causing new cracks.

Therefore, bolted cover plates or steel jacketing are often preferred for reinforcement. These methods add strength without introducing significant heat, minimizing the risk of further fatigue damage.

In cases where the steel beams are severely compromised, complete replacement is the only safe option. This is especially true for fracture-critical members where failure would cause collapse.

When replacing structural components or upgrading the bridge deck system, material selection is paramount. Using high-strength materials ensures long-term durability and resistance to future fatigue issues.

For concrete deck repairs associated with steel beam replacements, specifying high-quality reinforcement is vital. Utilizing HRB500 Rebar provides excellent seismic performance and structural safety for heavily loaded bridge sections.

These high-strength seismic-resistant steel bars strictly adhere to national standards. They are core representatives of high-strength materials in modern construction engineering, ensuring the repaired sections withstand significant loads.

Ultimately, the decision to replace or reinforce must prioritize public safety. Engineers must weigh the immediate costs of replacement against the long-term risks and maintenance costs of repairs.

Life-cycle cost analysis often guides this decision-making process. While initial replacement costs are higher, it eliminates recurring inspection and repair expenses, providing better long-term value for infrastructure owners.

What Preventive Maintenance Strategies Can Extend Bridge Lifespan?

While detecting cracks is reactive, preventive maintenance is proactive and far more cost-effective. Keeping water and de-icing salts away from steel beams is the primary defense against corrosion.

Corrosion significantly accelerates fatigue crack growth by creating surface pits that act as stress concentrators. Ensuring that expansion joints and deck drains are fully functional prevents water infiltration.

Regularly cleaning the steel surfaces and repainting them with high-performance coating systems is essential. A intact paint system acts as a physical barrier against moisture and corrosive elements.

Tightening loose bolts in spliced connections prevents fretting fatigue. Maintenance crews should periodically check bolt torque and replace any missing or severely corroded fasteners to maintain connection rigidity.

Managing traffic loads is another crucial preventive strategy. Enforcing weight limits and routing overweight vehicles away from aging bridges reduces the cyclic stress ranges that drive fatigue crack growth.

Upgrading bridge bearings and expansion joints can also alleviate unintended stresses. Properly functioning bearings allow the steel beams to expand and contract freely, preventing unexpected restraint forces.

Implementing a comprehensive structural health monitoring system provides continuous data. Sensors can track strain, vibration, and temperature, alerting maintenance teams to anomalous behaviors before visible cracks even form.

By integrating these preventive strategies, maintenance personnel can significantly delay the onset of fatigue damage. This proactive approach maximizes the return on infrastructure investment and ensures public safety.

Training maintenance crews on the latest inspection technologies is equally important. Well-trained personnel can identify subtle signs of distress early, preventing minor issues from escalating into major structural failures.

Conclusion

Detecting fatigue cracks in aging bridge steel beams is a multifaceted challenge that requires vigilance and technical expertise. Understanding common crack locations allows inspectors to focus their efforts effectively.

Utilizing the appropriate non-destructive testing methods ensures that both surface and subsurface flaws are accurately identified. Evaluating crack severity then guides the decision-making process for maintenance interventions.

Whether opting for crack arrest, reinforcement, or complete replacement, the ultimate goal is to maintain structural integrity. High-quality materials play a pivotal role in these rehabilitation efforts.

Furthermore, implementing robust preventive maintenance strategies mitigates the root causes of fatigue and corrosion. By combining reactive inspections with proactive care, we can safely extend the lifespan of our vital infrastructure.

Continuous collaboration between inspectors, engineers, and material suppliers ensures optimal outcomes. This unified approach guarantees that aging bridges remain safe, reliable, and capable of serving communities for decades to come.
