Designing snow-resistant roofs in northern U.S. states demands precise engineering—especially when specifying corrugated steel sheet load capacity charts for 1.2m spans. As a leading structural steel manufacturer & exporter from China, Hongteng Fengda delivers high-strength, ASTM/EN-compliant corrugated steel sheet alongside cold rolled steel sheet, pre-painted steel sheet, and steel rebar—offering competitive steel rebar price per ton without compromising quality or safety. Whether you’re a project manager assessing roof integrity, a procurement specialist comparing material specs, or a safety officer verifying compliance, our data-backed charts and certified products support confident, code-aligned decisions.

How Snow Load Requirements Shape Corrugated Steel Sheet Selection for 1.2m Roof Spans

In northern U.S. states—including Minnesota, Wisconsin, Maine, and upstate New York—ground snow loads range from 40 psf (2.0 kN/m²) to over 70 psf (3.4 kN/m²), per ASCE 7-22. For roofs with 1.2m (≈4 ft) purlin spacing, the corrugated steel sheet must resist both uniform distributed loads and localized point loads from drifting snow. Structural performance hinges on profile depth, base metal thickness (typically 0.5–1.2 mm), zinc coating mass (Z275 or Z350), and substrate grade (e.g., ASTM A653 S320GD+Z275).

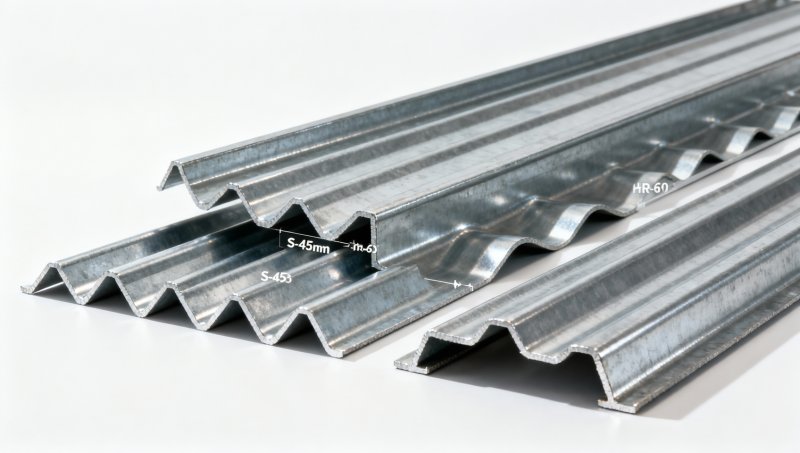

Unlike flat sheets, corrugated profiles derive strength from geometry: wave height (35–55 mm), pitch (150–200 mm), and flange stiffness directly influence deflection limits (L/240) and ultimate capacity. At 1.2m span, even minor thickness deviations—e.g., ±0.05 mm—can shift allowable live load by ±12%. That’s why certified load charts—not generic brochures—are non-negotiable for compliance with IBC 2021 and local building departments.

Hongteng Fengda validates all corrugated steel sheet load capacities via third-party testing at accredited labs (SGS, BV), using ASTM E1998 for cyclic loading and ASTM C1532 for wind uplift simulation. Each batch is traceable to heat number, galvanizing bath log, and tensile test report—ensuring full alignment with EN 10346:2015 and ASTM A792M.

Key Technical Parameters: What to Verify Before Specifying 1.2m-Span Corrugated Sheets

Selecting the right corrugated steel sheet isn’t just about thickness—it’s about system-level compatibility. Below are the five non-negotiable parameters engineers and procurement teams must cross-check before finalizing specifications:

• Base metal thickness tolerance: ±0.02 mm (not ±0.05 mm)—critical for consistent bending moment resistance across 1.2m spans.
• Zinc coating mass: Minimum 275 g/m² (Z275) for northern climates; 350 g/m² (Z350) recommended where de-icing salts accelerate corrosion.
• Yield strength range: 280–350 MPa for standard profiles; ≥450 MPa for high-strength variants used in low-slope industrial roofs.
• Profile consistency: Wave height deviation ≤±1.5 mm over 3m length—verified via laser profilometry, not visual inspection.
• Fastener pull-out resistance: ≥1.8 kN per self-drilling screw (tested per ASTM D7147), especially at eave and ridge zones.

For projects requiring integrated structural support, Channel In Steel serves as a robust purlin solution—available in Q235B and Q345B grades, with heights from 80–160 mm and thicknesses spanning 1.5–25 mm. Its hot-dip galvanized finish ensures >50-year service life in freeze-thaw cycles when paired with corrugated roofing.

Corrugated Steel Sheet Load Capacity Comparison (1.2m Span, ASTM A653 G90)

The table below compares typical load capacities for three widely used corrugated profiles under ASCE 7-22 snow load scenarios. All values assume continuous lateral support, 0.8 mm base metal, and Z275 coating.

Note: Values assume full anchorage and no intermediate supports. For unheated buildings or variable occupancy, designers must apply ASCE 7-22 load combinations (e.g., 1.2D + 1.6L_r + 0.5S). Hongteng Fengda provides downloadable Excel-based calculators aligned with these combinations—available upon technical inquiry.

Procurement Decision Checklist: From Load Chart to On-Site Delivery

Procurement professionals face tight timelines, budget constraints, and multi-tiered compliance checks. To streamline sourcing for northern U.S. projects, use this 6-point checklist before issuing POs:

1. Confirm load chart includes both “serviceability limit state” (deflection) and “ultimate limit state” (failure) values—verified per ASTM E1998.
2. Require mill test reports (MTRs) showing tensile strength, yield point, and elongation—traceable to ASTM A653 or EN 10346 heat numbers.
3. Verify zinc coating mass via independent lab report—not supplier-declared values.
4. Check packaging method: interlayer paper + edge protection prevents scratching during 2–4 week ocean transit to U.S. East Coast ports.
5. Validate lead time: standard corrugated sheets ship within 15–25 days; custom profiles require 35–45 days.
6. Confirm documentation package includes bilingual (EN/CN) installation guidelines and fastener torque specs.

With over 12 years of export experience to North America, Hongteng Fengda maintains dedicated QC teams in Qingdao and Tianjin ports—performing pre-shipment inspections per AQL Level II (ISO 2859-1). Our average order fulfillment rate exceeds 98.7%, and 92% of shipments meet original delivery windows—even during peak Q4 demand.

Why Global Projects Choose Hongteng Fengda for Structural Steel Integrity

When roof failure risk meets procurement complexity, partners rely on Hongteng Fengda for three proven advantages:

• Standards-aligned precision: Every corrugated sheet and Channel In Steel component is manufactured under ISO 9001-certified processes—with real-time thickness monitoring and automated zinc coating verification.
• North America–ready logistics: We hold bonded warehouse space in Savannah, GA, enabling 7–10 day inland delivery after customs clearance—reducing port demurrage and project delays.
• Technical partnership, not transactional supply: Our engineering team co-reviews load charts, provides stamped calculations for local AHJs, and supports field troubleshooting—free of charge for qualified projects.

Ready to validate your 1.2m-span roof design? Contact us today for: (1) project-specific load capacity charts, (2) ASTM/EN certification dossiers, (3) sample kits with full MTRs, or (4) OEM profile development for unique architectural requirements. Let’s ensure structural resilience—without compromise.
