ASTM A106 Gr.B Equivalent: International Standards Comparison

Understanding ASTM A106 Gr.B equivalent standards is crucial for technical evaluators sourcing structural steel for international projects. This guide compares ASTM A106 Gr.B with equivalent EN, JIS, and GB specifications, helping procurement teams make informed material decisions. As a trusted Chinese manufacturer, Hongteng Fengda provides detailed technical insights to ensure compliance and performance across global construction applications.

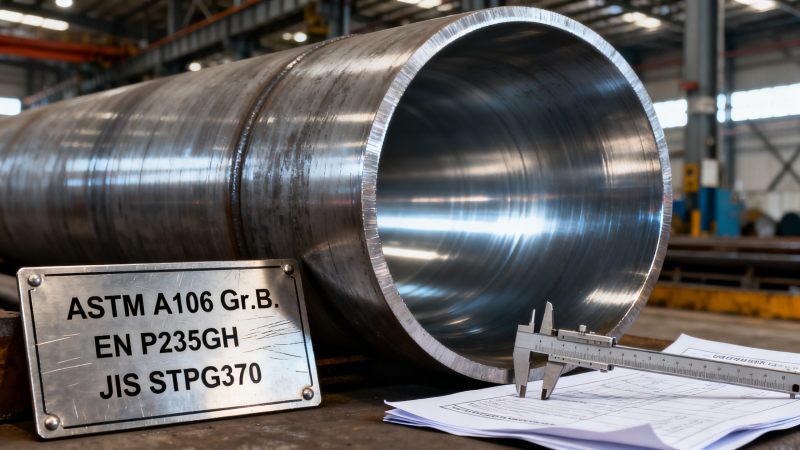

What is ASTM A106 Gr.B?

ASTM A106 Gr.B is a seamless carbon steel pipe specification widely used in high-temperature and high-pressure applications, including power plants, refineries, and petrochemical facilities. It offers a minimum tensile strength of 415 MPa and yield strength of 240 MPa, with carbon content ranging between 0.19% and 0.30%.

The standard covers three grades (A, B, and C), with Grade B being the most commonly specified due to its balanced mechanical properties and weldability. Typical applications include:

  • Steam and water pipelines
  • Boiler tubes and heat exchangers
  • Process piping systems
  • Structural supports in high-temperature environments

ASTM A106 Gr

International Equivalent Standards Comparison

When sourcing materials globally, engineers must understand how ASTM A106 Gr.B compares to other international standards. The table below provides a detailed comparison of mechanical properties and chemical composition:

Standard Equivalent Grade Tensile Strength (MPa) Yield Strength (MPa) Carbon Content (%)
EN P235GH 360-480 235 ≤0.16
JIS STPG370 370-510 215 ≤0.30
GB 20G 410-550 245 0.17-0.24

Key differences include:

  • EN standards typically require lower carbon content for improved weldability
  • JIS specifications often have slightly wider tolerance ranges
  • GB standards may include additional testing requirements for domestic projects

Material Selection Considerations

When evaluating Structural I Beam or piping materials against ASTM A106 Gr.B equivalents, consider these technical parameters:

  • Temperature range: -29°C to 425°C for most carbon steel applications
  • Impact testing requirements for low-temperature service
  • Corrosion allowance calculations for specific environments
  • Dimensional tolerances (typically ±12.5% for wall thickness)

Application-Specific Recommendations

The choice between ASTM A106 Gr.B and its equivalents depends on project requirements and regional standards. Here are typical application scenarios:

Industry Preferred Standard Reason
North American Oil & Gas ASTM A106 Gr.B Familiarity and regulatory acceptance
European Power Plants EN 10216-1 P235GH Compliance with PED directives
Asian Infrastructure JIS STPG370 or GB 20G Local procurement advantages

Why Choose Hongteng Fengda for ASTM A106 Gr.B Equivalent Materials

As a professional structural steel manufacturer, Hongteng Fengda offers:

  • Multi-standard certification including ASTM, EN, JIS, and GB
  • Customized solutions for specific project requirements
  • Strict quality control with 100% dimensional verification
  • Global logistics support with 30-45 day lead times

Our Structural I Beam products meet international standards with these specifications:

  • Thickness: 4.5mm-15.8mm (customizable)
  • Length: 6-12m (adjustable per request)
  • Flange width: 100mm-400mm
  • Tolerances maintained within ±1%

Technical Consultation Services

For projects requiring ASTM A106 Gr.B equivalent materials, our engineering team provides:

  • Material selection guidance based on operating conditions
  • Standard cross-reference documentation
  • Welding procedure specifications
  • Third-party inspection coordination

Contact our technical specialists today to discuss your project's specific requirements for ASTM A106 Gr.B equivalent materials and structural components.
