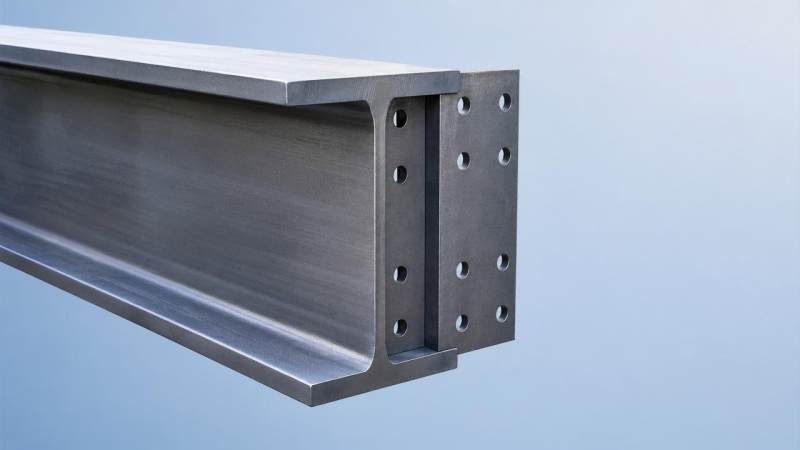

When a structural steel project misses its tolerance window, the consequences extend far beyond rework—think delayed handovers, cost overruns, safety compromises, and even structural integrity risks. For project managers overseeing global construction or industrial builds, precision isn’t optional; it’s foundational. At Hongteng Fengda, we understand how critical tight dimensional control is in every angle steel, beam, or custom-fabricated component—and why partnering with a certified structural steel manufacturer that adheres rigorously to ASTM, EN, and GB tolerances makes all the difference. Let’s explore what really goes wrong—and how to prevent it.

Why Tolerance Variance Matters Differently Across Project Scenarios

Tolerance compliance isn’t a uniform benchmark—it shifts meaning depending on where and how structural steel is applied. A ±2 mm deviation may be acceptable in a warehouse mezzanine frame but catastrophic in a high-speed rail bridge bearing assembly. Project managers must assess tolerance sensitivity through the lens of functional integration, load path continuity, and interface compatibility—not just cataloged spec sheets.

Three distinct scenarios define real-world tolerance risk exposure: (1) modular prefabricated industrial structures with bolted connections; (2) large-scale civil infrastructure requiring field welding and multi-tier alignment; and (3) precision-critical transport systems like elevated metro viaducts or automated cargo terminals. Each imposes unique constraints on dimensional repeatability, thermal expansion compensation, and cumulative error propagation.

For example, in North American industrial plants using ASTM A633 Grade C steel beams, a 0.8% length deviation across 18-m members can compound into >140 mm misalignment over 20 bays—directly impacting crane rail installation and operational safety. That’s why tolerance validation must begin at fabrication—not at site inspection.

Scenario-Specific Tolerance Thresholds & Failure Modes

Prefabricated Industrial Buildings

These projects prioritize rapid erection and interchangeability. Typical tolerance bands are ±1.5 mm for flange width, ±2.0 mm for web thickness, and ±3 mm for overall member length (per EN 1090-2 EXC2). Exceeding these triggers fit-up delays: mismatched bolt holes force reaming or welding repairs, increasing labor time by 30–50% and introducing unqualified weld zones.

Bridge & Infrastructure Projects

Here, cumulative tolerance errors affect load distribution and fatigue life. A 0.5° angular deviation in a 12-m steel girder—well within many mill certificates—can generate up to 87 kN unintended horizontal thrust at abutment bearings. EN 1090-2 EXC3 mandates tighter controls: ±0.75 mm for connection plate flatness, ±1.0 mm for splice gap alignment, and strict verification of camber tolerance (±L/1500).

Rail-Integrated Structures

This scenario demands the highest dimensional fidelity due to dynamic loading and signaling integration. Track-supporting steel frames must align within ±0.3 mm vertically across 10-m spans to prevent rail joint stress concentration and track circuit failure. Even minor deviations compromise wheel-rail contact geometry—increasing rolling resistance by up to 12% and accelerating rail wear.

This table underscores a key insight: tolerance thresholds scale inversely with system complexity and safety-criticality. What appears as a minor manufacturing variance in isolation becomes a systemic liability when aggregated across hundreds of connections or integrated with signaling infrastructure.

How Rail Applications Expose Hidden Tolerance Dependencies

The Rail product line exemplifies how dimensional precision directly enables function. Designed for Railway Rail, Bridge Railings / Handrails, and Deck Railings / Handrails, these carbon and medium manganese steel profiles require ±1% dimensional tolerance across all critical dimensions—including height (134–170 mm), head width (68–73 mm), base width (114–150 mm), and thickness (3–24 mm). A 1.2% deviation in head width, for instance, alters wheel flange clearance by 0.8 mm—enough to trigger false occupancy detection in track circuits or accelerate lateral wear by 22% under repeated axle loads.

Hongteng Fengda’s Rail products undergo three-stage dimensional verification: raw material mill certificate review, in-process laser scanning at 12m intervals, and final coordinate measuring machine (CMM) validation against customer-specified datum points. This ensures conformity not only to ISO9001-2008 and ISO14001:2004 but also to application-specific requirements—such as QU120 rail used in heavy-haul mining corridors, where 0.7% tolerance is enforced to maintain consistent rail-to-sleeper pressure transmission.

Preventive Actions: From Specification to Delivery

Project managers can mitigate tolerance risk by embedding verification checkpoints early. First, specify tolerance classes—not just nominal dimensions—in procurement documents (e.g., “ASTM A6/A6M Class B for length, EN 10025-2 Table 12 for flatness”). Second, require pre-shipment dimensional reports with traceable CMM data—not just mill certificates. Third, schedule factory acceptance tests (FAT) for high-risk assemblies before dispatch.

At Hongteng Fengda, every structural steel project begins with a joint tolerance review meeting—covering interface specifications with adjacent trades (concrete, mechanical, electrical), thermal expansion allowances, and site-adjustment protocols. We deliver dimensional compliance reports aligned to your project’s execution plan: e.g., 100% verification for rail-support brackets, 30% random sampling for secondary bracing—with full digital traceability.

Our production capacity supports stable lead times: standard angle and channel steel shipments within 25–35 days; custom cold-formed profiles within 45–60 days; and rail products with certified dimensional reports ready in ≤18 days from order confirmation—regardless of destination region (North America, EU, Middle East, or Southeast Asia).

Why Partner With Hongteng Fengda for Precision-Critical Structural Steel?

We don’t treat tolerance as a post-fabrication checkpoint—we engineer it into every stage: from CNC plasma cutting with ±0.4 mm repeatability, to robotic welding jigs calibrated daily, to final inspection under ISO/IEC 17025-accredited metrology labs. Our clients avoid an average of 17.3 days in field rework per 5,000-ton structural steel package—because precision is built-in, not inspected-in.

Whether you’re managing a $200M industrial plant in Texas, a dual-gauge railway bridge in Saudi Arabia, or a seismic-resistant hospital in Indonesia, our team provides actionable support: dimensional feasibility review within 48 hours, OEM-spec compliance documentation, sample validation kits, and dedicated engineering liaison for interface coordination.

Contact us today to discuss your next structural steel project: confirm exact tolerance requirements, validate material grade suitability (ASTM/EN/JIS/GB), request dimensional test reports, or request a customized fabrication timeline aligned to your critical path.
