Steel plate angle—whether galv steel angle, architectural steel angle, or carbon steel angle iron—is widely used in modern façade systems for its strength and versatility. Yet, hidden thermal bridging risks in metal angle bars, L-shape angle iron, and steel angle trim can compromise energy efficiency, condensation control, and long-term building performance. From steel iron angle to angle bars with holes and metal angle plate solutions, improper specification or installation may undermine sustainability goals and regulatory compliance. As a trusted structural steel manufacturer & exporter from China, Hongteng Fengda helps global project teams—from technical evaluators to procurement and decision-makers—select thermally optimized, standards-compliant steel angle components that balance performance, safety, and cost.

Why Thermal Bridging in Steel Angle Façade Components Is a Silent Performance Killer

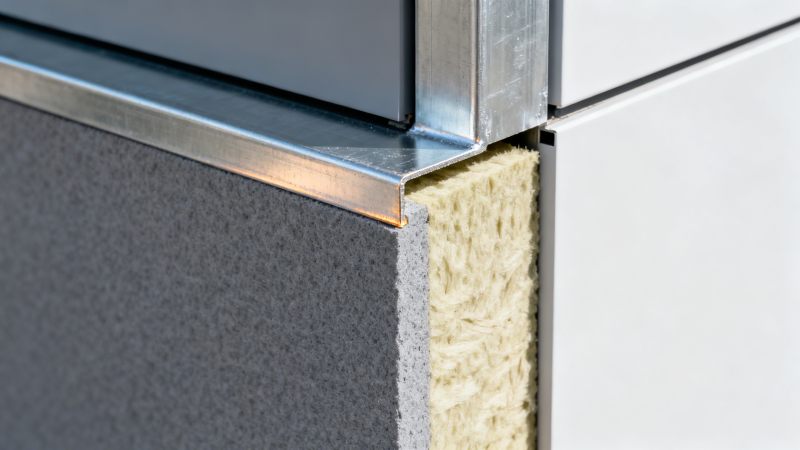

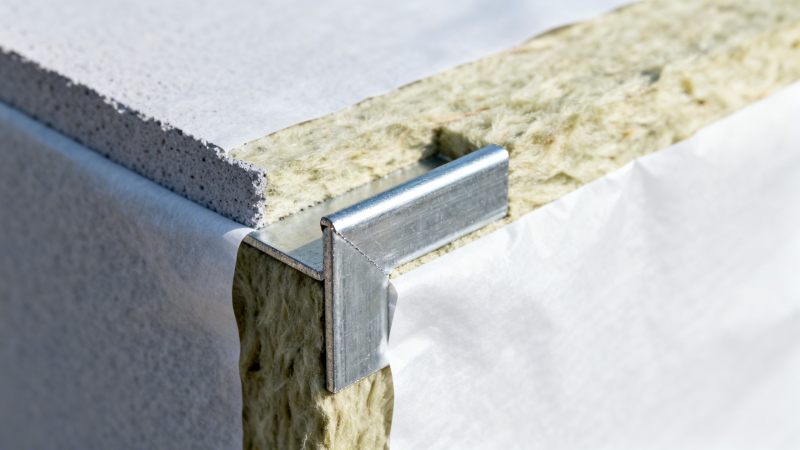

Thermal bridging occurs where highly conductive materials—like carbon steel or galvanized angle iron—create uninterrupted heat flow paths across insulated building envelopes. In façade systems, steel plate angles often serve as anchoring elements, support brackets, or trim details. Even small cross-sections (e.g., 30×30×3 mm L-angle) can transmit up to 8–12 times more heat than adjacent insulated wall zones.

Field studies show that unmitigated steel angle thermal bridges can increase whole-wall U-values by 25–40%, directly impacting HVAC load calculations. For a typical 20,000 m² commercial façade, this translates to an estimated 12–18% annual energy penalty—and higher risk of interstitial condensation behind cladding, especially in humid climates like Southeast Asia or the Gulf region.

The problem is compounded when architects specify standard hot-rolled or cold-formed angle steel without thermal break integration. Unlike aluminum extrusions with polyamide thermal breaks, most structural steel angles lack built-in insulation. Retrofitting post-installation is rarely feasible—making early material selection critical for compliance with EN ISO 10211, ASHRAE 90.1, or China’s GB 50189-2015.

This table highlights how material choice directly affects thermal performance. While stainless steel offers lower conductivity than carbon or galvanized steel, its primary value lies in corrosion resistance—not thermal optimization. For façade anchoring, it should be paired with insulating washers, thermal break plates, or composite spacers—not relied upon alone.

Design & Specification Strategies to Mitigate Thermal Bridging

Effective mitigation starts at design stage—not procurement. Structural engineers and façade consultants must collaborate early to map all steel angle penetrations through insulation layers. Critical thresholds include: ≤15 mm maximum contact area per anchor point, ≥25 mm minimum insulation thickness around embedded steel, and ≤0.08 W/(m²·K) linear thermal transmittance (Ψ-value) for continuous angle elements.

Hongteng Fengda supports this workflow with custom-engineered solutions: thermally broken steel angle assemblies (using EPDM or PTFE interface layers), powder-coated low-conductivity alloy variants (e.g., ASTM A656 Grade 80 with added Cu/Ni), and laser-cut angle profiles with integrated insulation grooves. All products comply with ASTM A6/A6M, EN 10025-2, and GB/T 706-2016 dimensional tolerances (±0.5 mm on leg length, ±1.0 mm on thickness).

For projects targeting LEED v4.1 or BREEAM Outstanding, we provide third-party verified Ψ-value reports and full thermal modeling support—including THERM/PHPP file exports. Lead time for certified thermal-break configurations averages 25–35 days, versus 12–18 days for standard stock sections.

Key Specification Checklist for Procurement Teams

• Verify test reports for thermal transmittance (EN ISO 10211 or ASTM C1363) — not just tensile strength
• Confirm surface treatment compatibility: hot-dip galvanizing (≥85 µm coating) must not degrade thermal break integrity
• Require batch-specific mill test reports (MTRs) traceable to EN 10204 3.1 or 3.2
• Validate dimensional stability under thermal cycling: ≤0.03% expansion variance over -20°C to +70°C range

Global Compliance & Sourcing Considerations for Steel Angle Buyers

Procurement professionals face divergent regional requirements: North American projects demand ASTM A36/A572 Grade 50 with Charpy V-notch impact testing at -20°F; EU tenders require CE marking under EN 1090-2 EXC2 execution class; Middle East clients mandate ISO 14001-certified production and 100% non-destructive testing (NDT) for façade-critical angles.

Hongteng Fengda maintains dual-certified facilities (ISO 9001:2015 + ISO 14001:2015) and operates dedicated export QA labs in Tianjin. Every shipment includes pre-shipment inspection (PSI) documentation, dimensional verification reports, and corrosion resistance validation (salt spray ≥500 hrs per ASTM B117). Our average order fulfillment rate exceeds 98.7% across 12 global logistics hubs.

These parameters reflect real-world operational capacity—not theoretical best-case scenarios. We maintain strategic inventory buffers for top 10 SKUs (including 50×50×5 mm and 75×75×6 mm galv steel angle) to support urgent project timelines without premium pricing.

How Hongteng Fengda Delivers Value Across the Project Lifecycle

From concept to commissioning, our engagement model aligns with stakeholder roles: technical evaluators receive BIM-ready Revit families and thermal simulation datasets; procurement teams get consolidated DDP/DAP quotes with Incoterms® 2020 clarity; project managers access real-time logistics dashboards with ETAs updated every 12 hours.

For façade contractors, we offer on-site engineering support—including weld procedure qualification (WPQ) assistance and field joint inspection protocols. All steel angle shipments include serialized QR-coded traceability tags linking to MTRs, heat numbers, and coating thickness logs.

Our quality system reduces rework risk: dimensional deviation rates are maintained below 0.3% across 12,000+ tons shipped annually. This reliability translates directly to schedule certainty—critical when façade installation windows compress to 4–6 weeks on high-rise developments.

FAQ: Critical Questions from Global Buyers

Q: Can I use standard carbon steel angles if I add external insulation?
A: Surface-applied insulation does not eliminate thermal bridging through the steel mass. Internal breaks or isolation spacers are required—typically reducing Ψ-values by 65–75% versus untreated angles.

Q: What’s the minimum order quantity for custom thermal-break angles?
A: MOQ is 5 metric tons for OEM-designed profiles, with lead time extending to 45–55 days depending on tooling complexity.

Q: Do you supply angles with pre-drilled holes for façade fixings?
A: Yes—we offer CNC-punched angles with hole patterns compliant with Hilti, Fischer, and Simpson Strong-Tie anchor systems (tolerance ±0.2 mm).

Thermal bridging in steel plate angles isn’t a secondary concern—it’s a foundational performance determinant. By integrating material science, international compliance rigor, and project-phase collaboration, Hongteng Fengda empowers global teams to specify, source, and install façade steel with confidence. Whether you’re evaluating thermal models, negotiating contracts, or verifying site deliveries, our engineering-first approach ensures structural integrity never compromises energy targets.

Contact our façade solutions team today to request thermal performance data sheets, coordinate BIM coordination sessions, or initiate a project-specific quotation with full compliance documentation.
