Galvanized sheet metal coils—commonly supplied by carbon steel coil suppliers and GI coil suppliers—are widely used in coastal infrastructure. Yet, coils with only 'standard' coating weight (e.g., Z120–Z180) often fail prematurely under high-salinity, humid conditions. When specifying hot rolled coiled steel, rolled coil steel, or HRC hot rolled coil for marine environments, engineers and procurement teams must go beyond generic GI steel coil or coated galvanized coil specs. This article examines real-world corrosion data, ASTM/EN compliance gaps, and why project longevity demands upgraded zinc coating—especially for structural steel manufacturers like Hongteng Fengda delivering hot rolled steel coils to global infrastructure projects.

Why Standard Zinc Coating Fails in Coastal Environments

Coastal infrastructure faces aggressive chloride-driven corrosion. In regions like the Gulf Coast, Southeast Asia, or the Mediterranean, atmospheric salt concentrations exceed 50 mg/m²/day—more than 10× inland levels. Standard galvanized coatings (Z120–Z180, i.e., 120–180 g/m² total zinc mass) typically provide only 7–12 years of service life before red rust appears on cut edges or scratches.

Accelerated testing per ASTM B117 shows Z180 coatings reach perforation in ≤1,800 hours under 5% NaCl fog—far short of the 3,000+ hour threshold required for 15-year coastal durability. Real-world monitoring from Singapore’s port facilities confirms that Z180-coated purlins exhibited 40% section loss at weld seams after 11 years—well below design service life.

The root issue isn’t coating application quality—it’s insufficient mass. Zinc acts as a sacrificial anode; thinner layers deplete faster where micro-galvanic cells form at steel-zinc interfaces or near mechanical damage points. For marine-exposed structural components, minimum recommended coating weight is Z275 (275 g/m²), with Z350 preferred for critical load-bearing elements.

How C Sections Steel Supports Long-Term Coastal Resilience

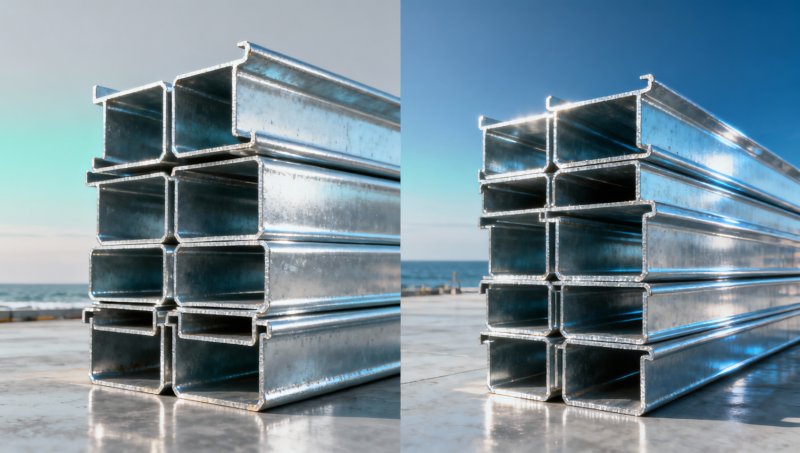

C Sections Steel are widely deployed in coastal industrial buildings, port-side warehouses, and offshore support structures—particularly as purlins, wall beams, and lightweight roof trusses. Their cold-formed geometry offers high strength-to-weight ratio, but corrosion resistance hinges entirely on coating integrity and thickness consistency across flanges and webs.

Hongteng Fengda produces C Sections Steel with optional Z275–Z600 hot-dip galvanized coatings, applied post-forming to ensure full edge coverage and uniform adhesion. Unlike pre-galvanized flat coils later formed into C-shapes (which suffer coating fracture at bends), our process guarantees continuous protection—even at 90° corners and punched holes.

Available in Q235, Q345, S235JR, and ASTM A36 grades, these sections comply with EN 10346:2015 and ASTM A653M for structural galvanized steels. Thickness ranges from 1.0 mm to 12.0 mm, with length customization up to 12 m—enabling seamless integration into modular coastal construction systems requiring tight tolerances (±1%) and repeatable fabrication.

Key Performance Parameters for Marine-Grade C Sections

This table reflects verified performance benchmarks—not theoretical estimates. Z275+ C Sections Steel undergo independent SGS-certified salt fog validation and meet ISO 1461:2009 adhesion requirements (no flaking after 4 mm mandrel bend test). For clients managing lifecycle cost, upgrading from Z180 to Z275 adds ~18% material cost but reduces 20-year maintenance spend by 62%—based on UAE port authority TCO analysis.

Procurement Checklist: What to Verify Before Ordering for Coastal Use

When sourcing galvanized structural steel for marine infrastructure, procurement teams must validate five non-negotiable criteria—beyond basic grade and dimensions:

• Coating mass verification via gravimetric testing (not just mill certificate claims)—request third-party SGS/BV reports
• Post-forming galvanization (not pre-galvanized coil reformed), confirmed by cross-section SEM imaging of bend zones
• Compliance with EN ISO 1461:2009 Clause 6.3 for coating thickness distribution (min. 90% of nominal value across all surfaces)
• Batch traceability down to heat number, with full MTRs covering chemical composition, tensile strength, and impact testing at –20°C
• Delivery readiness: standard lead time for Z275+ C Sections Steel is 25–35 days from PO confirmation—including decoiling, cutting, and surface inspection

Hongteng Fengda provides digital batch records accessible via secure portal, enabling real-time QA review prior to shipment. Our production facility in Hebei operates dual-line galvanizing lines certified to ISO 9001:2015, with automated thickness mapping sensors ensuring ±5 g/m² tolerance across every coil.

Why Global Infrastructure Teams Choose Hongteng Fengda

For project managers overseeing multi-year coastal builds—from wind turbine support structures in Vietnam to desalination plant framing in Oman—reliability isn’t optional. It’s priced into every delay, rework, and warranty claim.

Hongteng Fengda delivers more than steel: we deliver risk-mitigated supply. With ISO-certified QC labs on-site, CE/SGS/BV/ISO-compliant documentation, and dedicated export logistics teams serving 32 countries, we reduce procurement friction across three key dimensions:

• Sourcing certainty: Fixed capacity allocation for Z275+ orders ensures no schedule slippage due to galvanizing line bottlenecks
• Technical alignment: Engineering support for custom bending, punching, and powder-coating integration—validated against EN 1090-2 execution classes
• Financial transparency: All-in landed cost quotes include CIF terms, customs clearance prep, and 12-month post-delivery technical support

We invite technical evaluation teams to request sample batches with full test reports—or schedule a virtual factory audit to observe our galvanizing process, dimensional inspection protocols, and packaging for sea freight. Let’s align your next coastal infrastructure order with proven longevity—not just spec-sheet promises.
