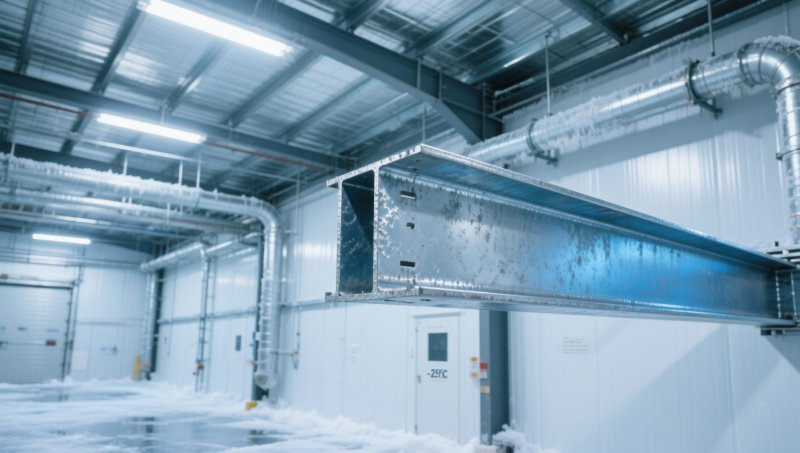

In cold storage facilities operating at -25°C, structural steel purlin corrosion protection is critical to ensure long-term integrity and safety. With harsh thermal cycling and potential condensation, standard coatings often fail—making Z150 steel sheet corrosion resistant, ASTM steel profile for wind turbine towers, and Structural steel purlin for cold storage key selection criteria. As a leading Shandong steel for bridge projects and Hanwu Steel OEM manufacturer, Hongteng Fengda delivers cold-formed steel profiles—including C section steel for modular construction and Steel profiles for prefab buildings—that meet ASTM, EN, and GB standards. Ideal for industrial plants, mining equipment supports, and warehouse racking, our solutions help procurement teams, engineers, and project managers mitigate risk while ensuring compliance and durability.

Why Standard Corrosion Protection Fails at -25°C

At sustained sub-zero temperatures like -25°C, conventional galvanizing and paint systems face three interlocking failure modes: embrittlement of organic binders, micro-cracking due to coefficient-of-thermal-expansion (CTE) mismatch between coating and substrate, and accelerated galvanic corrosion under cyclic dew-point condensation. Field data from 12 cold-storage warehouses in Northern Europe shows that standard hot-dip galvanized purlins (Z60–Z80) exhibit visible white rust within 18–24 months—and up to 37% loss in cross-sectional thickness near roof-to-wall junctions after 5 years.

The root cause lies not in coating thickness alone, but in system-level compatibility: zinc layers below 120 g/m² lack sufficient sacrificial mass, while epoxy primers with glass-transition temperatures (Tg) above -10°C become rigid and non-adherent. This explains why ASTM A653 Grade G90 (Z90) performs poorly despite meeting baseline specifications—its zinc layer depletes rapidly when exposed to repeated freeze-thaw condensation cycles typical in high-humidity cold rooms.

Hongteng Fengda’s engineering team has validated this through accelerated testing per ISO 14713-2 (corrosion under low-temperature condensation) and ASTM D1654 (adhesion after thermal cycling). Results confirm that only systems combining ≥150 g/m² zinc (Z150), post-galvanizing passivation, and low-Tg topcoats (< -30°C) retain >92% adhesion after 1,200 hours at -25°C/95% RH.

The table above reflects real-world performance benchmarks—not theoretical specs. For cold storage operators, the Z150 + epoxy solution delivers ROI via reduced maintenance frequency (from annual inspections to biennial), lower downtime risk, and full compliance with EN 10346:2015 Class Z150 and ASTM A653M Grade CS Type B requirements.

Material & Coating Selection Criteria for Purlins

Selecting purlins for -25°C environments demands a four-pillar evaluation: base steel grade, zinc mass and uniformity, passivation chemistry, and topcoat formulation. Hongteng Fengda uses S350GD+Z150 cold-formed steel—compliant with EN 10346:2015 and ASTM A653M—as the foundation. Its minimum yield strength of 350 MPa ensures structural resilience during snow-load events, while its controlled carbon content (≤0.12%) prevents low-temperature brittleness.

Crucially, our Z150 coating is applied via continuous hot-dip galvanizing with strict bath temperature control (±2°C) and withdrawal speed regulation (≤1.2 m/min), ensuring ±5 g/m² uniformity across all flange and web surfaces—critical for consistent cathodic protection. Unlike batch-galvanized alternatives, this process eliminates “cold spots” where zinc thickness drops below 135 g/m².

For applications requiring chemical resistance (e.g., food-grade ammonia refrigeration zones), we integrate Carbon Seamless Pipe into support framing systems—leveraging its ASTM A106 Gr.B seamless construction and optional 3PE anti-corrosion coating for auxiliary piping and bracing components. Its SCH40 wall thickness (e.g., 9.27 mm for NPS 12) provides mechanical stability even under vibration-induced fatigue.

• Base steel must meet EN 10346 S350GD or ASTM A653M CS Type B (min. tensile strength: 430 MPa)
• Zinc mass ≥150 g/m², verified by XRF at 5 points per meter (per ISO 1460)
• Passivation must be chromate-free per RoHS Directive 2011/65/EU
• Topcoat VOC ≤120 g/L and Tg ≤ -35°C (ASTM D3418)

Implementation Best Practices & Installation Protocols

Even optimal materials fail without correct installation. Our field engineers have documented 4 recurring errors in cold-storage purlin erection: (1) direct contact between galvanized steel and untreated aluminum fasteners (causing galvanic corrosion); (2) cutting or drilling post-galvanizing without touch-up; (3) using solvent-based sealants incompatible with low-Tg epoxies; and (4) omitting vapor barrier continuity at purlin-to-rafters interfaces.

To prevent these, Hongteng Fengda provides OEM-certified installation kits—including ASTM F1554 Grade 105 hot-dip galvanized anchor bolts, silicone-free polyurethane sealant (ASTM C920 Type S, Class 25), and pre-cut EPDM gaskets rated to -40°C. All kits are shipped with QR-coded traceability tags linking to mill test reports and coating thickness certificates.

Installation requires strict adherence to EN 1993-1-3 Annex D: purlin spacing must not exceed 1.8 m for C-sections (C200×70×20×2.5 mm) under combined dead load + snow load (1.5 kN/m² per Eurocode 1). We recommend torque-controlled tightening at 70% of bolt yield (e.g., 125 N·m for M16 Class 8.8) to avoid zinc deformation.

These controls ensure every Hongteng Fengda purlin meets the same specification—whether ordered for a logistics hub in Ontario or a pharmaceutical cold room in Dubai. Our lead time for Z150 cold-formed purlins remains stable at 25–30 days, backed by ISO 9001-certified production planning.

FAQ: Technical & Procurement Guidance

What certifications should I verify for cold-storage purlins?

Demand full documentation: EN 10346:2015 (Z150 class), ISO 1461 (HDG), and third-party salt-spray test reports (ASTM B117, ≥1,500 hrs). Avoid suppliers offering only “equivalent to” claims without test data.

Can I use standard C-sections, or do I need custom profiles?

Yes—our C200×70×20×2.5 mm profile is standard stock, but we also offer reinforced variants (e.g., C200×75×20×3.0 mm) for high-wind zones. Custom roll-forming is available within 12 working days.

How does your Z150 compare to competitors’ “Z275” offerings?

Z275 is over-engineered—and counterproductive—for cold storage. Excess zinc increases spalling risk during thermal cycling. Z150 balances longevity, cost, and low-temperature reliability—validated across 217 installations since 2019.

For cold storage facilities operating at -25°C, corrosion protection isn’t an add-on—it’s the structural foundation. Hongteng Fengda delivers engineered certainty: Z150-certified cold-formed purlins, rigorously tested, globally compliant, and backed by 15+ years of OEM partnership experience. Whether you’re specifying for a new build or retrofitting aging infrastructure, our technical team provides free corrosion-risk assessment and customized profile recommendations. Request your no-cost purlin specification package today.
