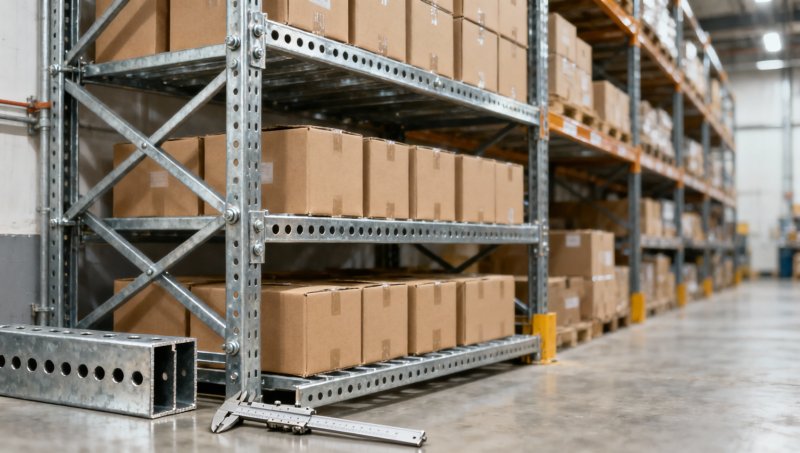

Size perforated steel angles for adjustable shelving by checking three things together: the bending and deflection of each shelf support, the capacity of the uprights under all supported shelves, and the stability of the assembled frame. A leg width and thickness alone cannot establish a safe shelf load. The hole pattern, member orientation, connections, and bracing can change which part of the shelving reaches its limit first.

The most reliable starting point is a supplier’s allowable-load data for the exact profile and assembly you intend to use. Where that evidence is unavailable, a structural assessment must account for the perforations and the behavior of an open angle section. Selecting a larger nominal angle can help, but it will not automatically correct a weak bolted joint, an unsupported shelf panel, or a frame that can sway.

Define the load and its path before choosing a section

Start with the required load per shelf, then describe how that load reaches the steel. Record the shelf width and depth, the distance between supports, the number of shelf levels, the overall height, and the intended shelf positions. Include the weight of the shelf panel and any permanently attached equipment. These inputs establish the demands on horizontal rails, uprights, connections, and the floor.

A shelf carrying evenly distributed cartons behaves differently from one carrying a machine component on two small feet. Both may have the same total weight, but the concentrated load can create greater local panel bending and a different distribution of forces into the rails. If the stored items are not controlled, consider credible unfavorable placements, including a heavy item near the front edge or at the middle of a span.

For an initial evaluation, document:

• Working load: the maximum intended contents and shelf self-weight, with mass converted into force for calculations.
• Load arrangement: distributed goods, discrete containers, equipment feet, or another concentrated loading pattern.
• Support arrangement: front and rear rails, side rails, intermediate supports, and the way the panel rests on them.
• Adjustment range: the highest, lowest, and most widely spaced shelf positions that users may select.
• Stability provisions: diagonal braces, corner plates, base details, and any specified wall or floor anchorage.

Do not assume that two rails each carry half the shelf load unless the panel and load arrangement justify that assumption. A centrally loaded panel supported symmetrically may distribute load approximately equally. Goods placed close to the front rail can shift much more of the load onto that member. A flexible panel may also distribute load differently from a rigid tray.

Trace the load through the entire assembly: contents to panel, panel to rails, rails through their joints into uprights, and uprights through their bases to the floor. An intermediate rail only helps if it has an effective supporting connection. Similarly, adding shelves increases upright load even when the individual shelf rating stays unchanged.

Check horizontal angles for deflection as well as strength

The unsupported span is often the most influential dimension for a shelf rail. Measure it between effective supports, rather than using the overall cut length. An angle extending beyond an upright may have a cantilevered portion that requires a separate check. A connection also needs enough stiffness and capacity to provide the support assumed in the calculation.

For a simply supported beam under a uniformly distributed load, the basic screening relationships are:

Maximum bending moment: M = wL² / 8
Maximum elastic deflection: δ = 5wL⁴ / (384EI)

Here, w is force per unit length, L is the supported span, E is the elastic modulus, and I is the relevant second moment of area. These equations show why reducing the span can be more effective than a modest increase in thickness. With the same load per unit length, halving the span reduces bending moment to one-quarter and calculated deflection to one-sixteenth.

Consider an illustrative shelf with a 1.2 m span and a total supported mass of 200 kg, including the panel. If two identical rails share a uniformly distributed load equally, each carries approximately 981 N. The corresponding maximum bending moment is about 147 N·m per rail. This is a load-demand calculation; it does not establish that any particular angle size is adequate.

If the project adopts a deflection limit of L/200, the allowable movement for that span would be 6 mm. Using E = 200 GPa as an illustrative steel modulus, the simple beam equation gives a required I of approximately 18,400 mm⁴ per rail. That value applies to the assumed load sharing and bending model. L/200 is an example of a project criterion, not a universal shelving requirement.

An angle requires more care than the simple beam model suggests. Its principal axes are inclined relative to its legs, and loading may produce bending about both axes. A load applied away from the shear center can also twist the section. Whether the shelf panel and connections restrain that twisting materially affects performance. Section properties must therefore match the installed orientation and an appropriate analysis of the rail.

Perforations add another complication. Properties calculated for an unpunched angle can overstate the performance of a perforated member. Holes remove material, interrupt load paths, and may create critical local sections. A strength check may need to consider yielding, local buckling, lateral or torsional instability, and local damage around holes. One percentage reduction applied to every property will not necessarily capture these effects.

A supplier’s validated load table can resolve much of this work when it covers the same section, span, orientation, perforation pattern, and restraint. If the proposed assembly differs, establish which assumptions remain applicable before using the stated capacity.

Choose dimensions according to the governing limit

Increasing leg width generally changes the bending stiffness and section geometry; increasing thickness adds material and can improve resistance to several local failure modes. Neither change has a fixed benefit independent of orientation and hole layout. A wider leg with a large slot near a critical location may perform differently from a narrower leg with smaller perforations.

Higher yield strength can increase some strength capacities, but it does not materially increase steel’s elastic modulus. If visible sag or panel fit controls the design, changing steel grade alone will usually offer little improvement. A shorter span, a better-supported panel, or a section with more suitable bending and torsional properties may address the problem more directly.

Treat perforations, joints, and uprights as part of the size decision

Profiles listed as angulo agujereado should be specified by their complete geometry. Record both leg dimensions, base-metal thickness, hole or slot dimensions, pitch, edge distances, and the relationship between perforations on the two legs. Also establish whether the profile is cold formed or hot rolled and then punched. Similar outside dimensions do not guarantee equivalent behavior.

Thickness deserves particular attention on light sections. Use the specified minimum base-metal thickness in capacity assessment where appropriate, and distinguish it from a measurement that includes coating. Manufacturing tolerances matter because a reduction in thickness can affect member stiffness, local buckling resistance, and connection bearing capacity.

The rail-to-upright joint must transfer its reaction through a defined bolt arrangement. Evaluate bolt shear, bearing against the perforated steel, tear-out toward an edge, and failure through a reduced section. Slots can permit movement before the bolts engage their ends, affecting alignment and frame stiffness. Washers and adequate tightening help control some connection behavior, but they do not replace a capacity check.

A single-bolt connection can allow rotation, depending on the detail. Multiple bolts or corner plates may improve restraint, but their contribution must be consistent with the assembly design. Do not assume that a shelf joint is rigid simply because it feels tight during installation. Conversely, a tested proprietary connection may provide useful restraint that a generic bolted detail cannot claim.

Uprights need a separate assessment for accumulated compression and buckling. Their demand includes the reactions from every loaded shelf above the point being checked. Uneven loading and eccentric rail connections can introduce bending as well. Dividing the total rack weight equally among four posts is only a preliminary estimate for a symmetric arrangement.

The effective unsupported length of an upright depends on actual restraint. A shelf level only reduces that length in a given direction if its panel, joints, and surrounding frame provide sufficient restraint. Moving adjustable shelves farther apart can therefore change the upright capacity even though no steel component has changed.

Check frame sway and overturning alongside member capacity. A tall frame with strong rails can still perform poorly if its joints rotate freely and no effective bracing is present. Back-plane bracing may control movement along the shelf width while leaving the depth direction insufficiently restrained. Wall ties and floor anchors require suitable substrates and connection details; their contribution cannot be assumed from their presence alone.

Where future adjustment is unrestricted, assess the most unfavorable permitted configuration. Alternatively, define approved shelf positions and bracing locations in the assembly instructions. The rated load should remain tied to those conditions.

Turn supplier information into a defensible selection

A useful load rating describes an assembly and a loading condition. Ask whether the stated value is an allowable working load, a test load, or an ultimate failure load. Establish whether it applies to one rail, one shelf, or the complete bay, and whether it includes panel weight. These distinctions can change the comparison between two apparently similar products.

For each candidate profile, obtain the evidence needed to connect its dimensions with the intended application:

• A section drawing showing perforations, tolerances, and installed orientation.
• An identified steel grade and applicable material specification, with relevant mechanical properties.
• Allowable loads or calculations covering the required span and load arrangement.
• The connection, bracing, panel, and support conditions used to establish those loads.
• The deflection criterion and the basis used to convert test or calculated resistance into a working rating.

Material certification supports the assessment, but certification to a steel specification does not establish the capacity of a complete shelving unit. Likewise, a tensile-strength value cannot substitute for the yield, buckling, connection, and serviceability checks that govern the assembly.

Galvanizing should be selected for the exposure conditions. It can improve corrosion protection, while the structural calculation still relies on the steel substrate. For damp or chemically aggressive storage areas, address coating suitability, cut edges, punched surfaces, and compatible fasteners. Coating appearance provides no useful evidence of shelf capacity.

When comparing options, keep the span, load pattern, permitted shelf positions, and deflection limit consistent. If one proposal needs an intermediate support while another uses a larger rail, compare the complete arrangements, including access to stored goods and assembly requirements. The lower-cost section may produce a less convenient shelf once its necessary supports are included.

The final specification should state the angle geometry and perforations, minimum base-metal thickness, grade, finish, maximum unsupported spans, bolt details, panel requirements, bracing, and allowable loading configurations. If a candidate passes strength checks but sags excessively, change its stiffness or support arrangement. If the joint or frame stability governs, resolve that detail before increasing the rail size. The selected angle is adequate only within the assembly conditions that support its rating.
