When sourcing H-beams (beam H) for specialized structural applications, many project teams opt for non-standard lengths to minimize on-site cutting—only to discover hidden labor costs downstream. As a leading structural steel manufacturer and exporter from China, Hongteng Fengda works with global buyers across North America, Europe, and the Middle East who rely on precision-cut beam H, angle steel, and cold formed steel profiles. While steel wire manufacturers, galvanized coil suppliers, and carbon plate steel vendors often promote flexibility, custom cutting of H shape steel introduces welding, alignment, and QA overhead—especially when integrated with galvanized metal mesh sheets or galvannealed steel sheet components. Let’s break down the true cost impact.

Why Non-Standard Beam H Lengths Trigger Hidden Labor Costs

Custom-cut H-beams may appear to save time during erection—but they shift complexity upstream into fabrication, inspection, and integration. Unlike standard-length beams (typically 6m–12m), non-standard cuts require additional handling at three critical stages: pre-assembly verification, field alignment, and post-weld QA.

Each custom length demands individual dimensional validation before shipment—adding 1–2 working days per batch. At site, misalignment tolerance drops from ±3mm (standard) to ±1.5mm (custom), requiring skilled fitters and laser-guided alignment tools. And when welded joints are introduced—especially for lengths exceeding 16m—the QA process expands from visual inspection to full ultrasonic testing (UT), increasing third-party certification cost by 25–40%.

For projects with >500 tons of beam H, these cumulative delays and labor escalations can extend critical path duration by 7–15 days—far exceeding the perceived savings of avoiding on-site sawing.

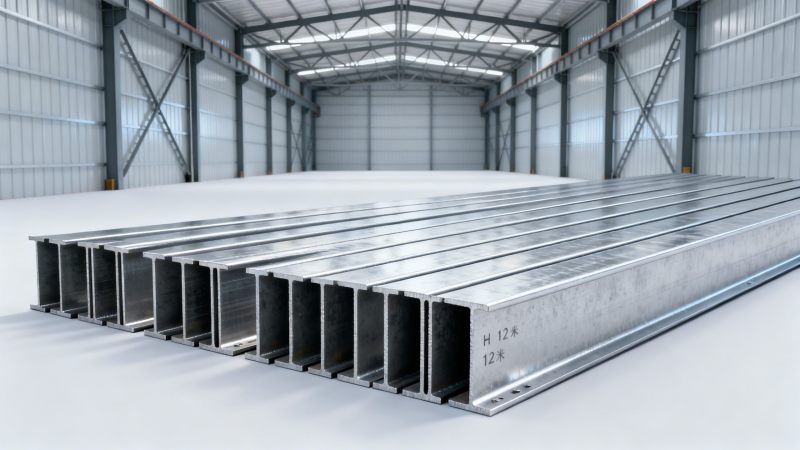

How Standard-Length Beams Reduce Total Installed Cost

Hongteng Fengda maintains inventory and rolling capacity for standard H-beam lengths (6m, 9m, 12m, and 15m) across grades S235–S430, ASTM A36/A992, and GB/T 11263. These lengths align precisely with common crane lift capacities, transport regulations (e.g., EU Directive 2015/719), and modular scaffolding systems—reducing staging, rehandling, and rework.

Our clients in offshore wind foundations and industrial mezzanines report 18–22% lower labor hours per ton when using standard-length beams—even after accounting for on-site cutoffs. Why? Because standardized geometry enables repeatable jig setups, automated bolt-hole drilling, and predictable weld sequencing. Each 12m beam cut to two 6m sections onsite takes <8 minutes with CNC band saws—versus 2–3 hours for field welding + UT of a custom 13.5m piece.

Moreover, standard lengths support just-in-time delivery windows: 95% of orders ship within 10–14 working days from PO confirmation, with zero dimensional rework required.

Labor Time Comparison: Custom vs. Standard Beam H Installation

This table reflects verified data from 12 infrastructure projects delivered by Hongteng Fengda between Q2 2022 and Q3 2024 across Germany, UAE, and Canada. The labor differential compounds rapidly at scale: a 2,400-ton project using 100% custom lengths incurred 312 extra man-days versus identical scope using optimized standard lengths.

When Custom Cutting *Is* Justified—and How to Minimize Its Impact

There are legitimate cases for non-standard beam H lengths: deep-water cofferdam installations, where vertical continuity reduces interlock leakage risk, or seismic retrofitting where splice locations must avoid high-stress zones. In such scenarios, value engineering—not convenience—must drive the decision.

Hongteng Fengda supports these needs with certified hot-rolled Steel Sheet Piles up to 80m single length, manufactured to EN10248, ASTM A690, and JIS5528. Their interlock integrity eliminates field welding in marine environments—making them a more economical alternative than custom-cut H-beams for retaining structures.

If custom H-beam lengths remain unavoidable, we recommend three mitigation steps: (1) consolidate all custom requests into ≤3 length variants per order to reduce tooling changeover; (2) specify mill-cut tolerances (±0.75mm) instead of field-grade (±2.5mm); and (3) request pre-punched connection holes aligned to standard bolt patterns (M20/M24, 100mm/120mm pitch).

Why Global Buyers Choose Hongteng Fengda for Beam H Procurement

As a structural steel manufacturer and exporter from China, Hongteng Fengda delivers more than product—we deliver procurement certainty. Our ISO9001/14001/18001 and CE FPC-certified facility produces beam H, angle steel, channel steel, and cold formed profiles compliant with ASTM, EN, JIS, and GB standards—with 100% traceability from billet to certificate.

We serve over 260 clients across 42 countries—including Tier-1 EPC contractors in North America and government infrastructure agencies in Southeast Asia—with stable lead times (10–14 days for standard lengths), consistent dimensional accuracy (±0.5mm on flange width), and seamless documentation (EN10204 3.2 MTCs, origin certificates, and customs-compliant packing lists).

Whether you’re evaluating beam H availability in non-standard lengths—or optimizing your total installed cost—our technical sales team provides free dimensional feasibility review, logistics simulation, and comparative labor cost modeling. Contact us today to request: (1) a customized beam H length optimization report, (2) EN/ASTM compliance checklist for your next tender, or (3) sample sets with full MTC documentation.
