When sourcing Hot Rolled I Beam for crane rails, buyers across construction, industrial, and infrastructure sectors — from project managers to quality control and procurement professionals — need assurance of material integrity and compliance. At Hongteng Fengda, a leading Structural Steel Manufacturer & Exporter from China, every Hot Rolled I Beam for crane rails is supplied with full Mill Test Reports (MTRs) and optional third-party certifications (e.g., SGS, BV, TÜV), aligning with ASTM, EN, and GB standards. This traceability supports critical applications like Steel profiles for railway infrastructure, ASTM steel beam for power plants, and Hanwu Steel for offshore platforms — ensuring safety, regulatory compliance, and long-term performance.

Why Mill Test Reports Are Non-Negotiable for Crane Rail Applications

Crane rails operate under extreme cyclic loading, dynamic impact, and high-stress bending — often carrying loads exceeding 50 tons per wheel set. In such environments, mechanical properties like tensile strength (≥520 MPa), yield point (≥340 MPa), and elongation (≥12%) must be verifiable, not assumed. A Mill Test Report provides certified, batch-specific evidence of chemical composition (e.g., C ≤ 0.77%, Mn 0.7–1.05%), mechanical test results, heat number traceability, and dimensional verification — all required for ISO 9001-compliant quality audits and EN 13674-1 compliance in rail infrastructure projects.

Unlike general structural beams, crane rails demand tighter tolerances: height deviation ±0.8 mm, head width ±0.5 mm, and base flatness ≤0.3 mm/m. These values are validated only through MTR-backed mill inspection — not generic factory certificates. At Hongteng Fengda, each shipment includes an MTR issued within 72 hours of final rolling, stamped by our ISO 9001-2008–certified QA lab and cross-referenced with heat treatment logs and ultrasonic testing records.

Third-party certification becomes essential when end users require independent validation — especially for projects governed by ASME B30.17 (crane safety), EU Machinery Directive 2006/42/EC, or GCC Standardization Organization (GSO) requirements. We offer SGS, Bureau Veritas (BV), and TÜV Rheinland verification on request, covering hardness uniformity (HBW 240–300), microstructure homogeneity (per ASTM E112), and surface defect scanning (ASTM E376).

How Certification Requirements Vary Across Rail Use Cases

Not all rail applications carry identical certification weight. For example, overhead bridge cranes in automotive assembly lines typically mandate full MTR + SGS mechanical retest (within 5 working days), while outdoor gantry cranes in port terminals may accept MTR-only delivery with optional third-party weldability testing (EN ISO 17637). Below is how compliance expectations scale with operational risk:

This tiered approach ensures cost-efficiency without compromising safety: over-certifying low-risk applications inflates procurement cost by 8–12%, while under-certifying high-cycle rails risks premature rail failure and unplanned downtime — costing up to $18,000/hour in production loss for Tier-1 manufacturing facilities.

Key Parameters Verified in Every MTR for Crane Rails

• Chemical analysis per heat lot (C, Si, Mn, P, S, Cr, Ni, Cu)
• Tensile strength & yield strength (ASTM A615/A615M)
• Elongation at break and reduction of area
• Hardness profile (3-point Rockwell C test across head/web/base)
• Dimensional compliance against EN 13674-1 or GB/T 2585

What You’ll Receive With Every Rail Order From Hongteng Fengda

Hongteng Fengda delivers crane rail solutions that combine international compliance with responsive supply chain execution. Each order includes:

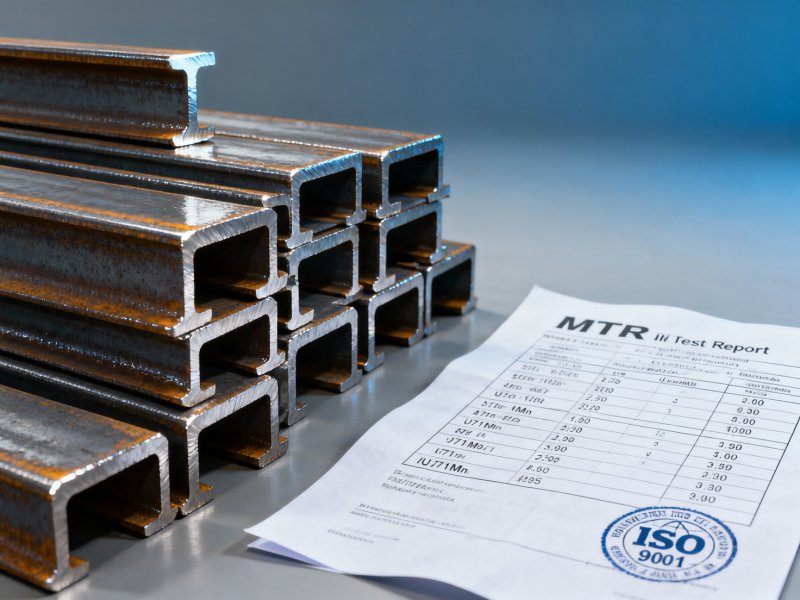

• Batch-specific Mill Test Report (MTR) with heat number, test date, and QA sign-off
• Dimensional inspection report (±1% tolerance verified per EN 10204 Type 3.1)
• Traceable packaging labels showing grade (e.g., U71Mn), length (12m–30m), and coating type (oil/black/galvanized)
• Optional third-party certification packages (SGS/BV/TÜV) — quoted separately with 3–5 business day turnaround

Our rail product range covers standard and specialized grades including Rail models U74, PD3, Q235, and QU120 — all conforming to GB/T 2585, EN 13674-1, and ASTM A1, with track heights from 134–170 mm and base widths from 114–150 mm. Stock availability enables delivery within 15–25 days for standard specifications (U71Mn, 43kg/m, 12m length); custom orders (e.g., BNbRE with quenched-and-tempered microstructure) require 35–45 days.

All rails undergo 100% ultrasonic testing (UT) per EN 12680-2 and magnetic particle inspection (MPI) on head surfaces before dispatch — critical for detecting subsurface cracks that could initiate under repeated wheel contact stress.

Why Global Buyers Choose Hongteng Fengda for Certified Crane Rails

Procurement teams, project engineers, and safety officers consistently select us because we eliminate three common pain points:

1. Uncertain lead times: Our dual-line rolling mill guarantees stable output of 12,000 MT/month — enabling firm commitments on 20–25 day delivery for 43kg/m U71Mn rails, even during peak season.
2. Fragmented documentation: We consolidate MTR, dimensional report, UT certificate, and packing list into one bilingual (English–Chinese) PDF package — accepted by customs authorities in the US, Germany, UAE, and Vietnam.
3. Limited technical support: Our engineering team provides free pre-shipment consultation on rail selection (e.g., PD3 vs. U71Mn for 150°C ambient temp), welding procedure qualification (WPQR), and installation alignment tolerances (≤0.3 mm/m).

Whether you’re specifying rails for a new container terminal in Rotterdam, upgrading crane systems in a Saudi petrochemical plant, or sourcing replacement rails for a Brazilian mining conveyor, Hongteng Fengda ensures full traceability, consistent metallurgy, and zero-compromise documentation — backed by 18 years of export experience across 42 countries.

FAQ: Common Questions About Crane Rail Certification

Do all crane rail grades require third-party certification?

No — MTR is mandatory for all grades. Third-party certification is required only when specified in the contract (e.g., for EU CE marking or ASME Section VIII Div. 1 compliance) or when end-user QA mandates independent verification beyond mill data.

Can I request MTRs before placing an order?

Yes. We provide sample MTRs for your selected grade (e.g., U71Mn, 50kg/m) within 24 hours of inquiry — including actual heat numbers, test dates, and lab signatures — so you can validate reporting format and completeness prior to PO issuance.

What’s the fastest way to get certified rails for urgent projects?

Choose stock-grade rails (U71Mn, 43kg/m, oil-coated, 12m) — available for immediate dispatch with full MTRs. Lead time drops to 7–10 days with air freight coordination and pre-loaded documentation.

Get Your Certified Crane Rail Quote Today

Ready to secure crane rails with guaranteed Mill Test Reports and flexible third-party certification options? Share your project specs — including grade (e.g., PD2), length (12m–30m), quantity (minimum 20 MT), delivery port (e.g., Rotterdam, Jebel Ali), and required certifications (MTR only / SGS / TÜV) — and we’ll deliver a formal quotation with full documentation scope, lead time, and Incoterms within 4 business hours.

Our export team supports FOB, CIF, CFR, and DAP terms, with real-time logistics tracking and dedicated QA liaison throughout order fulfillment. Contact us now to discuss rail selection, review sample MTRs, or request a customized compliance package for your next crane infrastructure project.
